COBHAM SAILOR XTR GX-R2 User Manual

SAILOR XTR GX-R2 system
98-175666-C Chapter 1: Introduction 1-6

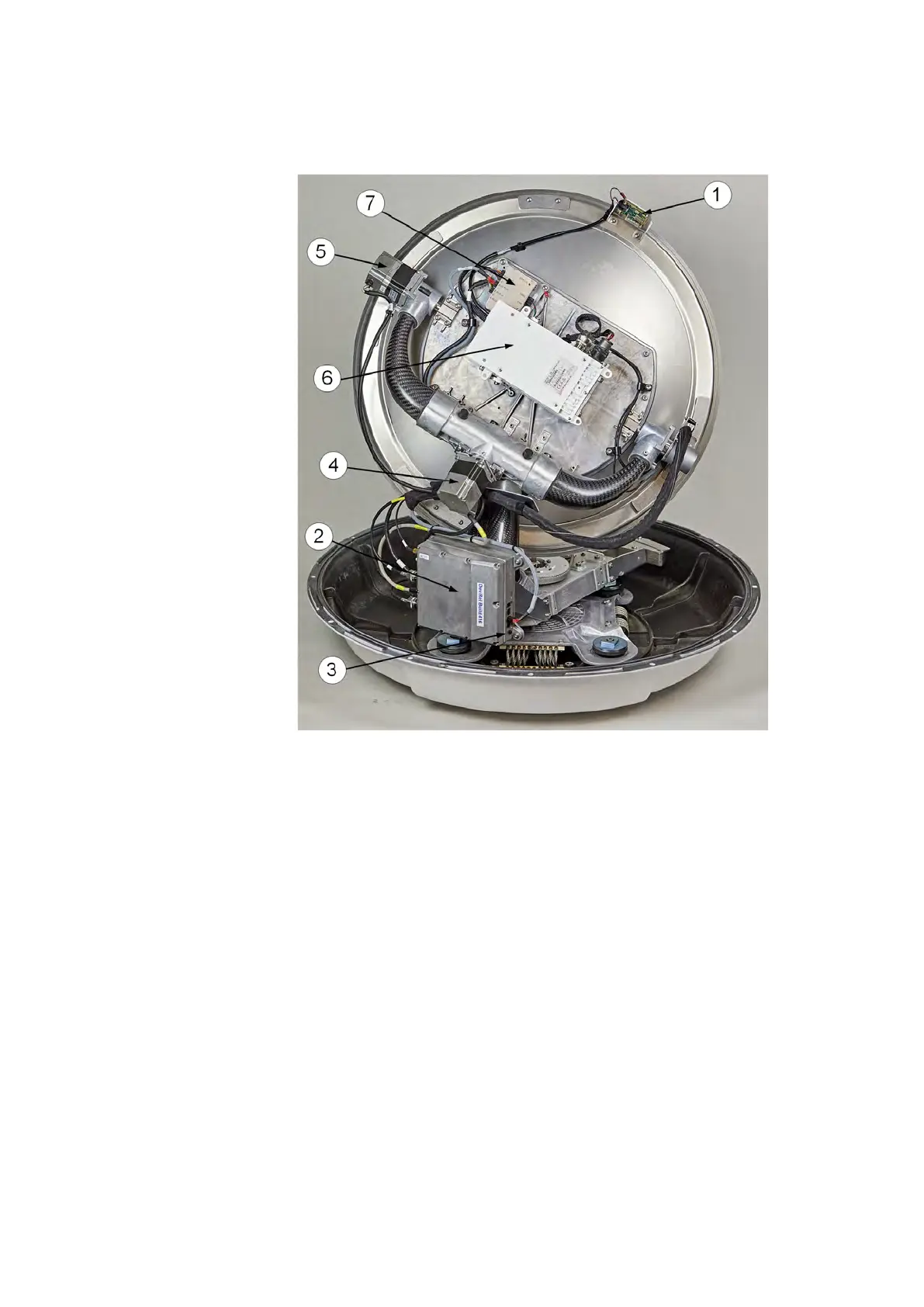

Modules in the ADU (SAILOR 600 XTR GX-R2)
1. GNSS module (GPS, GLONASS, BEIDOU).
2. XTR Antenna Control Module (ACM).
3. ADU power on/off.
4. Cross elevation motor.
5. Elevation motor.
6. GX-R2 Ka-band transceiver.
7. Inertial Sensor Module (ISM).
Figure 1-5: SAILOR 600 XTR GX-R2)ADU modules 1/2
