Integration of a 3rd party IP device
98-175666-C Chapter 2: Installation 2-28
Fasten the mounting bracket with 4.5 Nm
2.8.4 Example of a 3rd party device integration
The nano-fit connector supplies 12 VDC to power the LTE modem, which interconnects
to the antenna system on one of the LAN ports on the ACM.
The LTE modem enables remote access and/or near-shore high speed Internet. Having
the LTE modem inside the antenna is the ideal position for best possible LTE signal
reception.

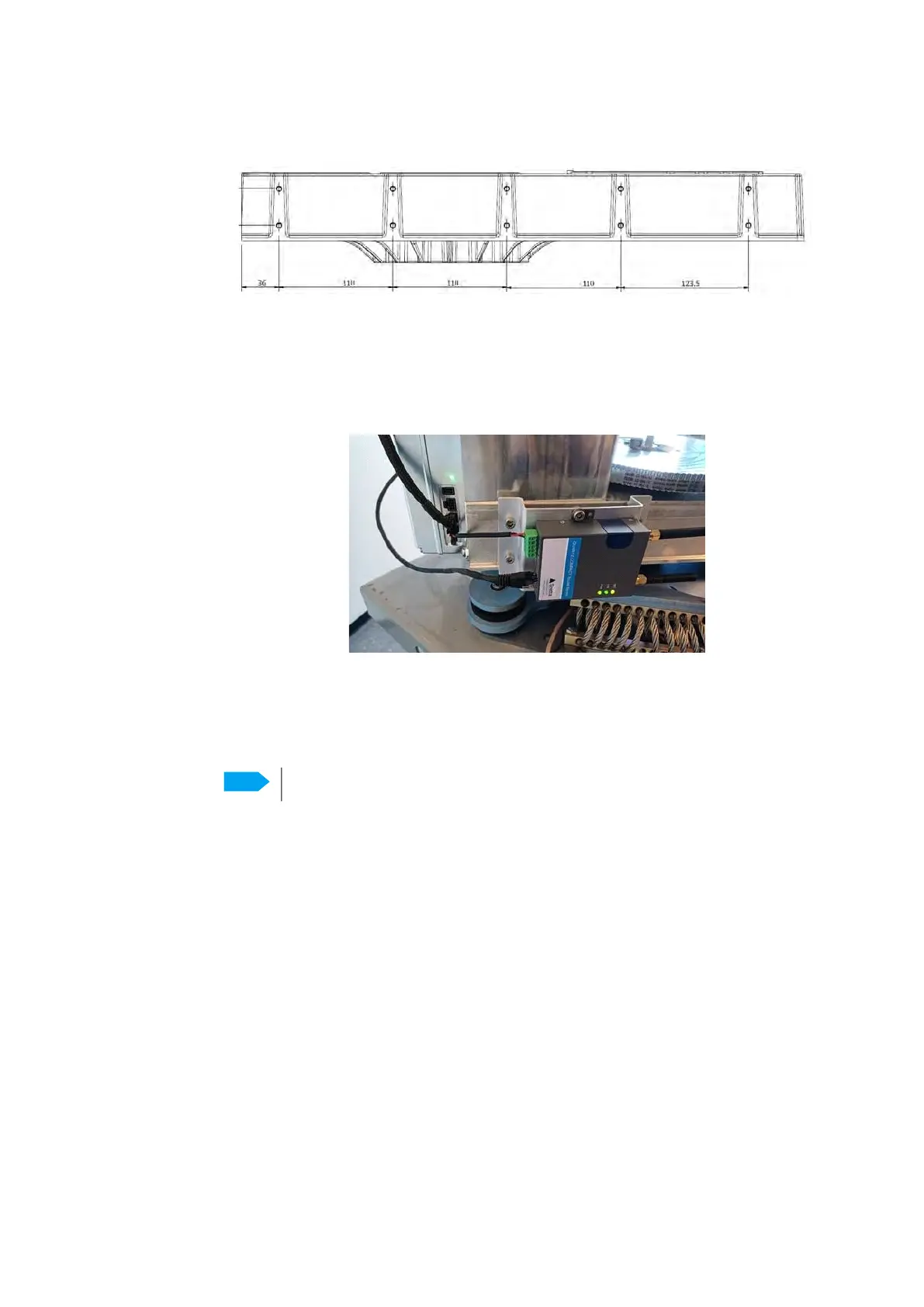

Figure 2-32: Mounting pattern, measures
Figure 2-33: LTE modem connection, example
Note
Make sure that there is sufficient space for reflector and cable movement.
