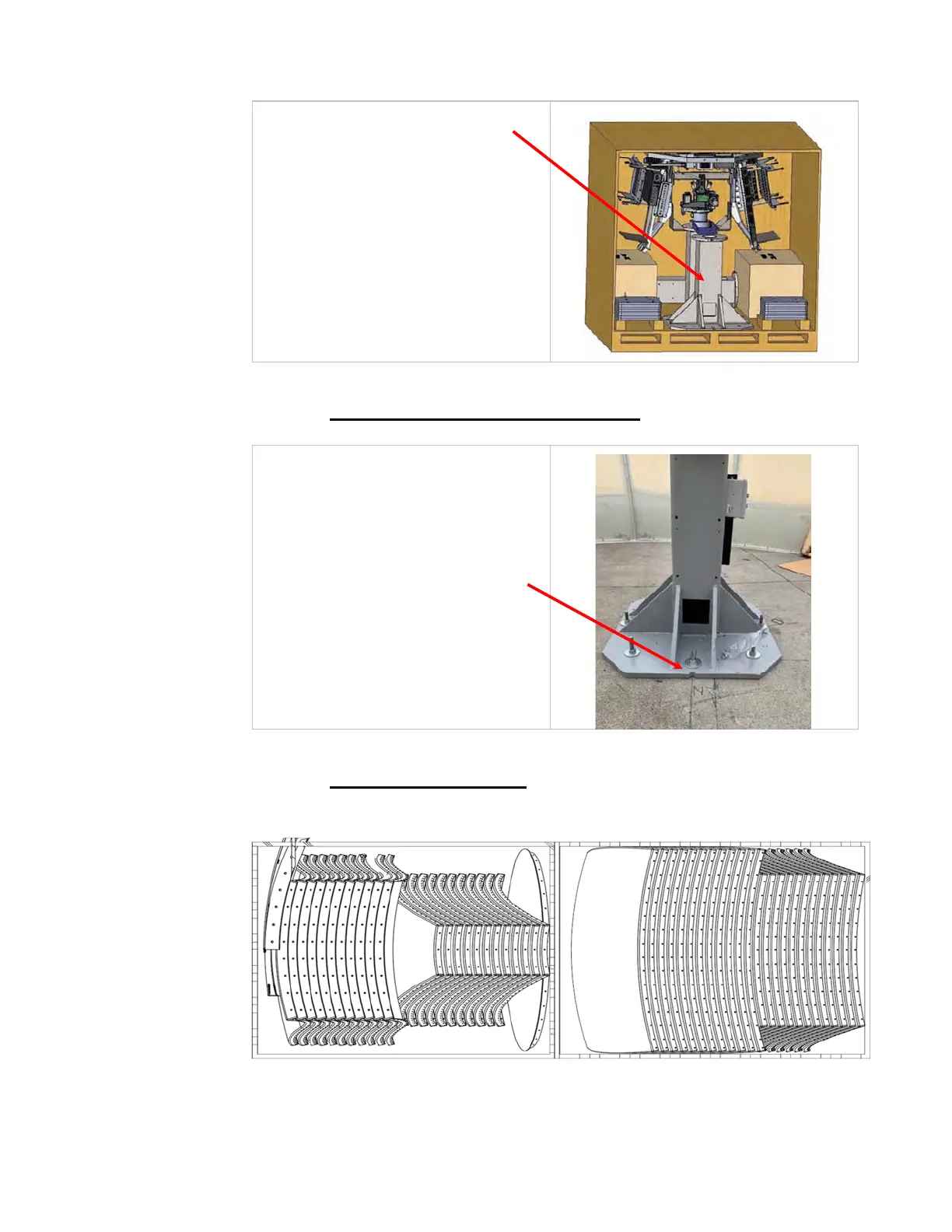

Installation
Sea Tel Tracker 6000
3.3.3.
Mount the Base section of the Pedestal
3.3.4.
Open Radome Crates (2)
Move the crate to a location that will not interfere with assembling the ODU.
Open the removable panel of Radome Crate 1 & 2. Inventory & Stage components
Panels 301-312 201-212 Cap 501-512 401-412
3‐3

EAR Controlled - ECCN EAR99
1. Locate the base post section
(approx. weight 700lbs) to its
mounting location on the concrete
pad.
2. The base MUST be oriented to true
North (notch pointing to true
North). Rotate the base to align
the notch with true North.
3. Bolt the pedestal base down on the
concrete pad. Apply Loctite to the
threads of the 8 mounting
bolts/studs. Install the bolts/studs
with washers through the base into
the anchors in the concrete and
tighten to torque spec.
2. Remove the shipping hardware
that mounts the Base of the
Pedestal to the pallet of the crate.
Discard this hardware.
