Sea Tel Tracker 6000 Installation
3.6.

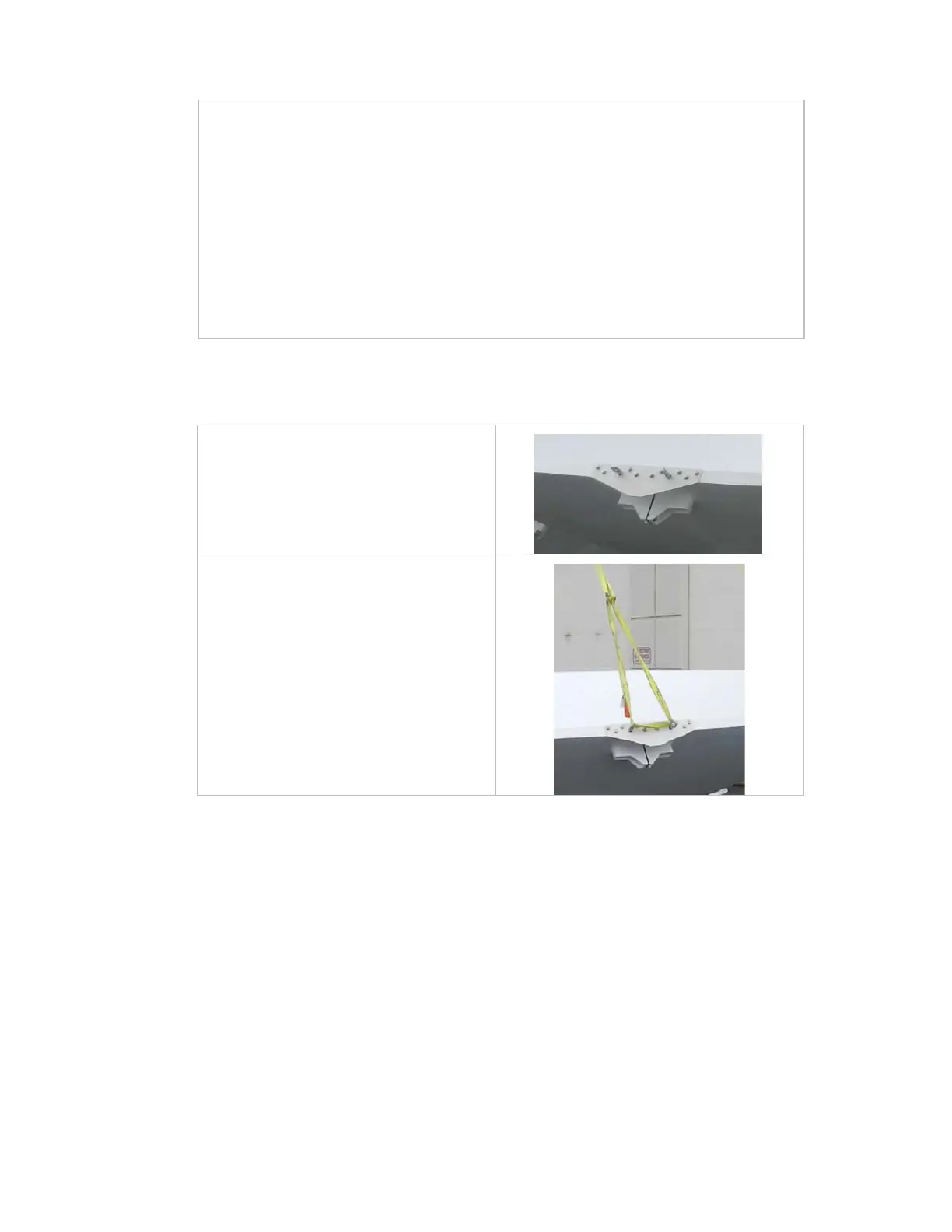

Installing the Reflector
1. Install one reinforcement bracket
on each seam leaving two bolts out
every other bracket (To be used as
Eye Nut mounting).
2. Install two 3/8-16 x 1-1/2” all
thread in empty bracket holes.
Install two lifting eye nuts on 4 out
of 8 brackets.
3. Attach 4 equal length straps to lift
antenna assembly. Make sure,
straps are long enough to clear
feed while lifting.
3‐14
EAR Controlled - ECCN EAR99
10. Apply Loctite to threads of the reflector petal mounting bolts & washers.
11. Mount petal 1 using the petal mounting bolts & washers, but leave bolt slightly
loose.
12. After mounting first petal, DO NOT mount adjacent petal as there is a potential for
hub to tip over which can cause reflector damage or Installer injury.
13. Sea Tel recommends mounting opposing petals in the following order; 1 then 5, 3
then 7, 2 then 6 and last 4 then 8.
14. After all hardware is installed, tighten all hardware starting with one seam (ie petal
1 & 2) at the reflector hub, then each bolt out to out end of each petal joint.
Tighten bolts to torque spec.
15. Repeat the previous step on the next seam. Continue with each subsequent seam
until all mounting bolts have been tightened to torque spec.
