Stowing the Antenna Sea Tel Tracker 6000
6.
Stowing the Antenna
This antenna must be properly stowed if the antenna will need to be immobilized for service or to remove it
from service.
Refer to drawing 62-167134 BRACKET KIT, SERVICE, T6000.
6.1.
I n s t a l l i n g t h e S e r v i c e B r a c k e t s
CAUTION; Do NOT remove the “tagged out” tag, or turn power breaker ON, until the Service
Brackets have been removed and all personnel are ready for the antenna to be energized.
1. Assure that the ODU/Antenna is ready to be de-energized/taken out of service.
2. Locate the Service Brackets and mounting hardware form their storage location.
3. If power to the ODU is being secured, turn the breaker OFF and tie a “Tag Out” tag to
the breaker that supplies power to the ODU.
4. If power to only the Antenna is being secured, turn the breaker OFF and tie a “Tag Out”
tag to the breaker that supplies power to the Antenna inside the Circuit Breaker Box.
5. Assure that all personnel in the area are
aware that the Service Brackets are being
installed.
6. Rotate the antenna Elevation up to zenith
(90).

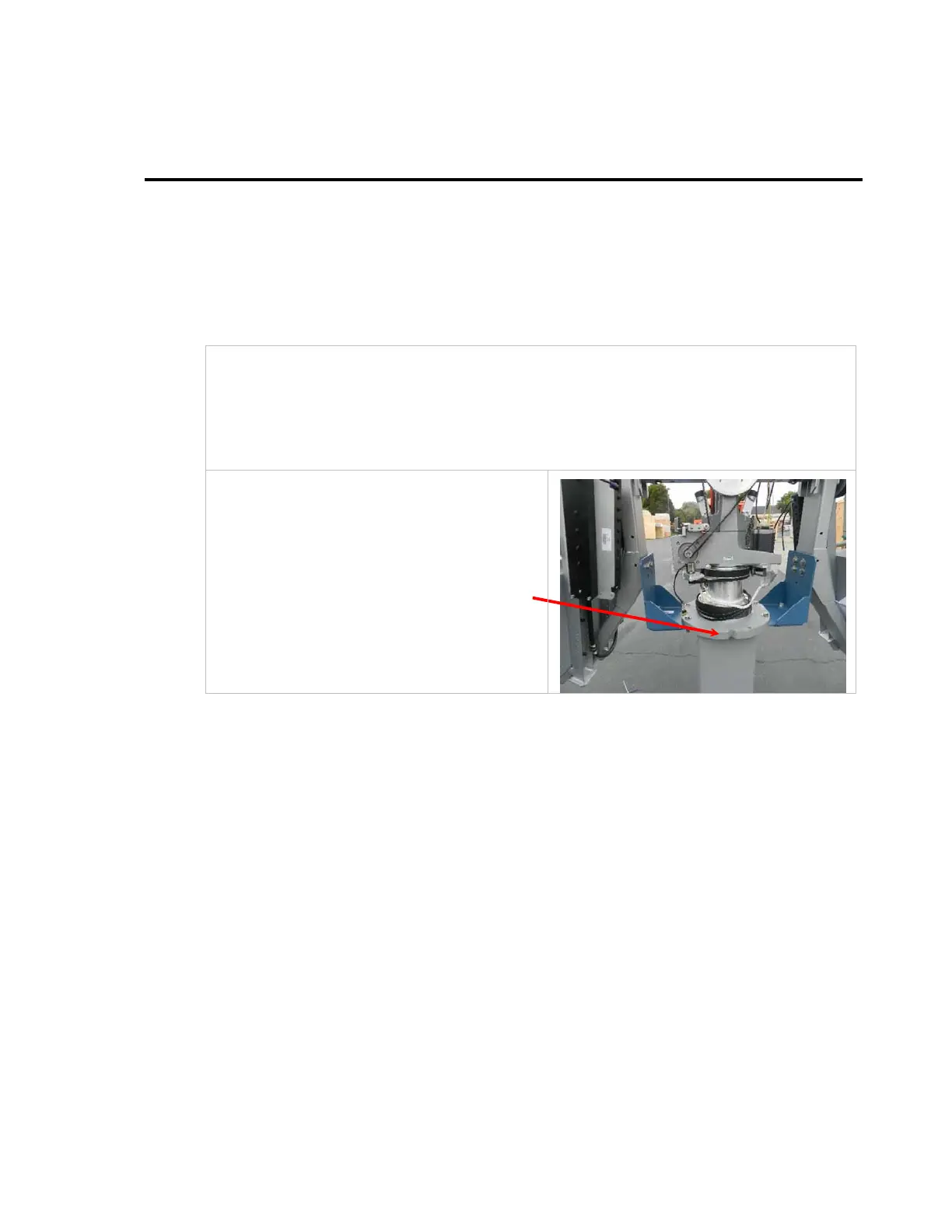

7. Rotate the antenna Azimuth to be
centered at the notch in the upper plate
of the post.
8. Install the bolts, washers and hex nuts.
9. Tighten mounting bolts to torque spec.
6.2.
R em ov e the Ser vice Br ack et s
CAUTION; Do NOT remove the Service Brackets until all assembly/service work has been completed
and you are ready to check mechanical rotation of the antenna and turn antenna power ON.
DANGER: Severe damage to the antenna, or the assembly/service personnel, can be caused by
removing the Service Brackets before all work has been completed and you are ready for the antenna
to be un-restrained.
CAUTION; Do NOT turn antenna power ON until the Service Brackets have been removed.
Refer to drawing 62-167134 BRACKET KIT, SERVICE, T6000.
6‐1
