Coby TF-TV3709 - Rear Panel Terminals and Cables

11
ENGLISH

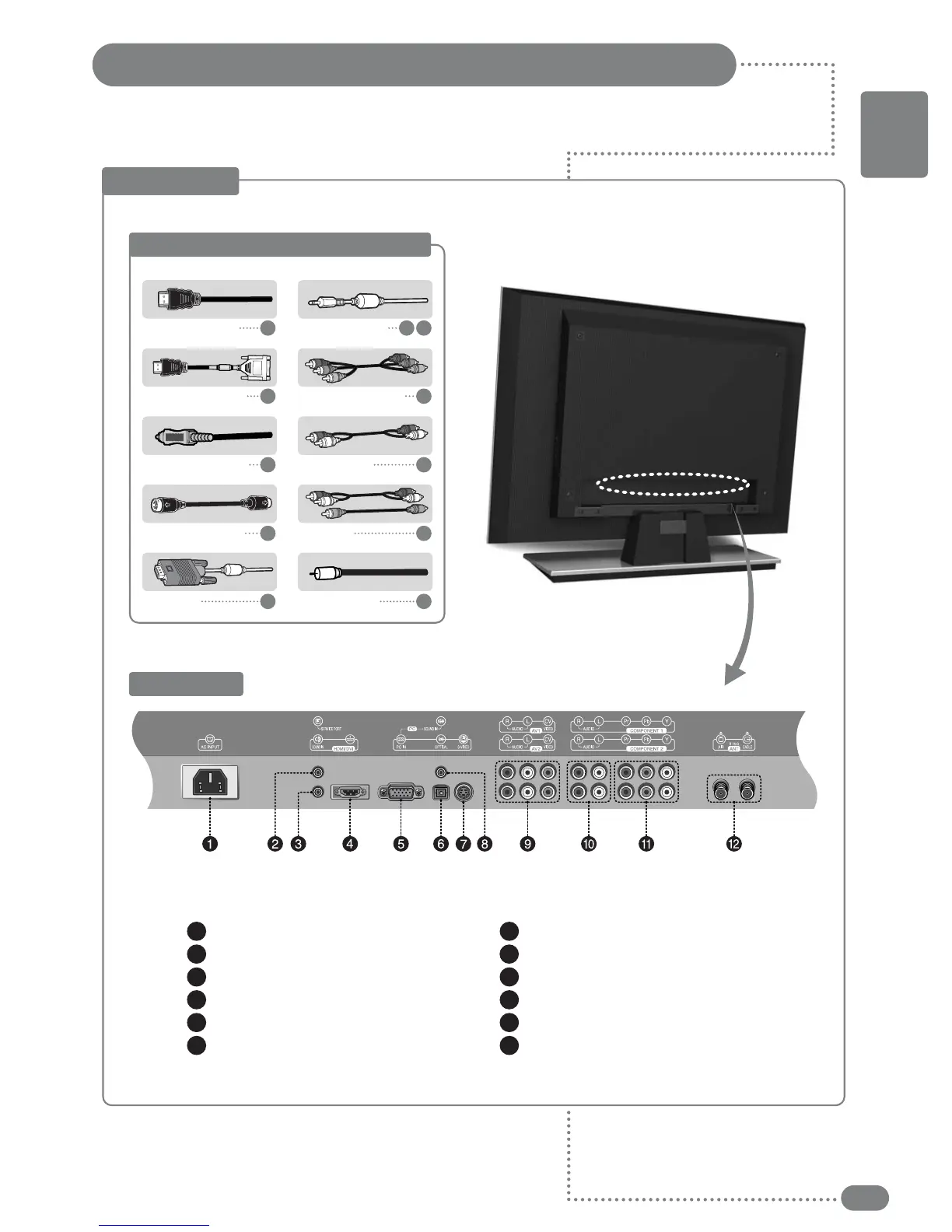

Viewing the Control Panels
Rear View
AC Power Input Terminal
Service Port
DVI Sound Input Terminal
HDMI/DVI Input Terminal
PC Input Terminal
Optical Digital Sound Output Terminal
S-Video Input Terminal
PC Sound Input Terminal
External Terminals 1, 2
Component Sound Input Terminals 1, 2
Component Video Input Terminals 1, 2
AIR, CABLE Antenna Input Terminal
1
2
3
4
5
6
7
8
9
10
11
12
Bottom Side
Connection Cables
(
Optional : not included
)
HDMI Connector
4
HDMI/DVI Connector
4
Digital Sound Connector
6
S-Video Connector
7
PC Cable
5
DVI/PC Sound Cable
83
Component Signal Cable
11
Sound Cable
10
AV Cable
9
Coaxial Cable
12
