Page 32 800 Series

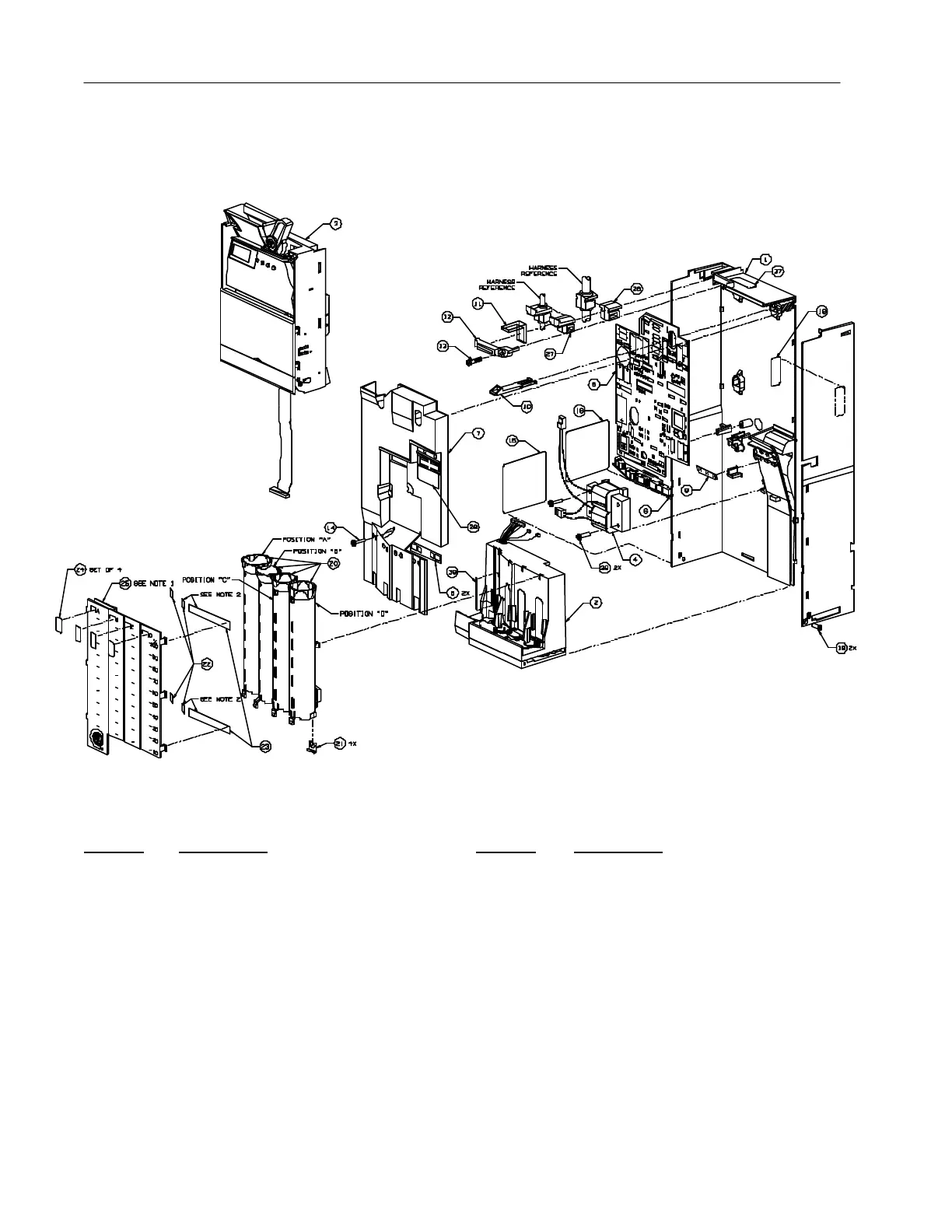

SECTION 6: EXPLODED VIEWS
800 Series Final Assembly
ITEM NO. DESCRIPTION
1 Assembly, Housing
2 Assembly, Payout
3 Assembly, Acceptor
4 Assembly, Transformer (F/S models only)
5 Logic Board
6 Board, Upper Tube Sense
7 Cover, Logic Board
8 Lens, Upper Tube Sense
9 Lens, Cashbox
10 Latch
11 PVC Foam
12 Bracket, Strain Relief
13 Screw, Pan Head #6 x 11/16
14 Screw, Pan Head #6 x 1/2
15 Label, Identification
16 Label, Patent
ITEM NO. DESCRIPTION
17 Harness, Bill Validator (optional, selective models)
18 Label, Configuration
19 Screw, Flat Head #4 x 5/16
20 Tube, Inventory
21 Shim
22 Mirror, Tube A
23 Mirror, Tube C and D
24 Labels, Tube
25 Front Cover/Coin Return
26 Plug, Lg. Strain Relief (selective models)
27 Plug, Sm. Strain Relief (selective models)
28 Label, Price Setting (F/S models only)
--
37 Label, Warranty (selective models)
38 Screw, Pan Head #4 x 3/4
39 Pad (selective models)
