Page 33
800 Series
ITEM NO. DESCRIPTION
1 Removed
2 Tube/Home Sense Board-Lower
3 Gear, Encoder
4 Cover, Gearbox
5 Base, Payout-Upper
6 Base Payout-Lower
7 Assembly, Motor/Harness
8 Assembly, Sweeper
9 Arm, Coin Clearing
10 Gear, Reduction
11 Gear, Pinion
12 Shaft, Gear
13 Cable Tie

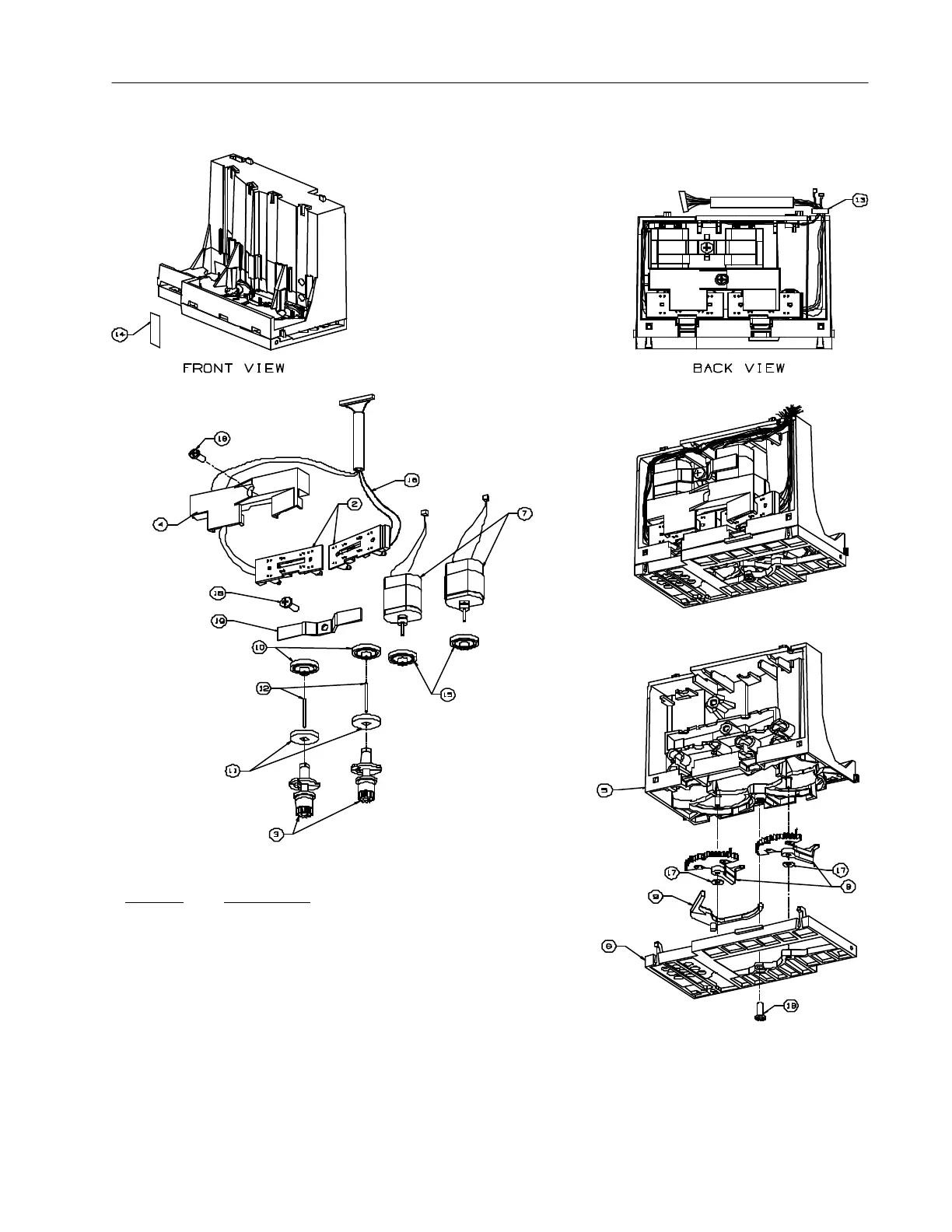

SECTION 6: EXPLODED VIEWS
800 Series Payout Base Assembly
14 Lens, Tube Sense-Lower
15 Gear, Reduction
16 Harness, Lower Tube Sense
17 Washer, Plastic (selected models only)
18 Screw, 8x1/2 PH, PHL, Threadcutting
19 Retainer, Motor
