COMAC ARJ21-700 - Page 192

ARJ21-SVV19-13120-00
RampServicingOperation
Instruction
FILL/VENT VALVE
DRAIN VALVE
DRAIN PORT
WATER FILLING LINE
OVERFLOW/DRAIN LINE
WATER SYSTEM
INTERFACE PANEL
WATER FILLING NIPPLE
SERVICE PANEL SWITCH
ICN-ARJ21-A-381300-A-SVV19-01219-A-002-01

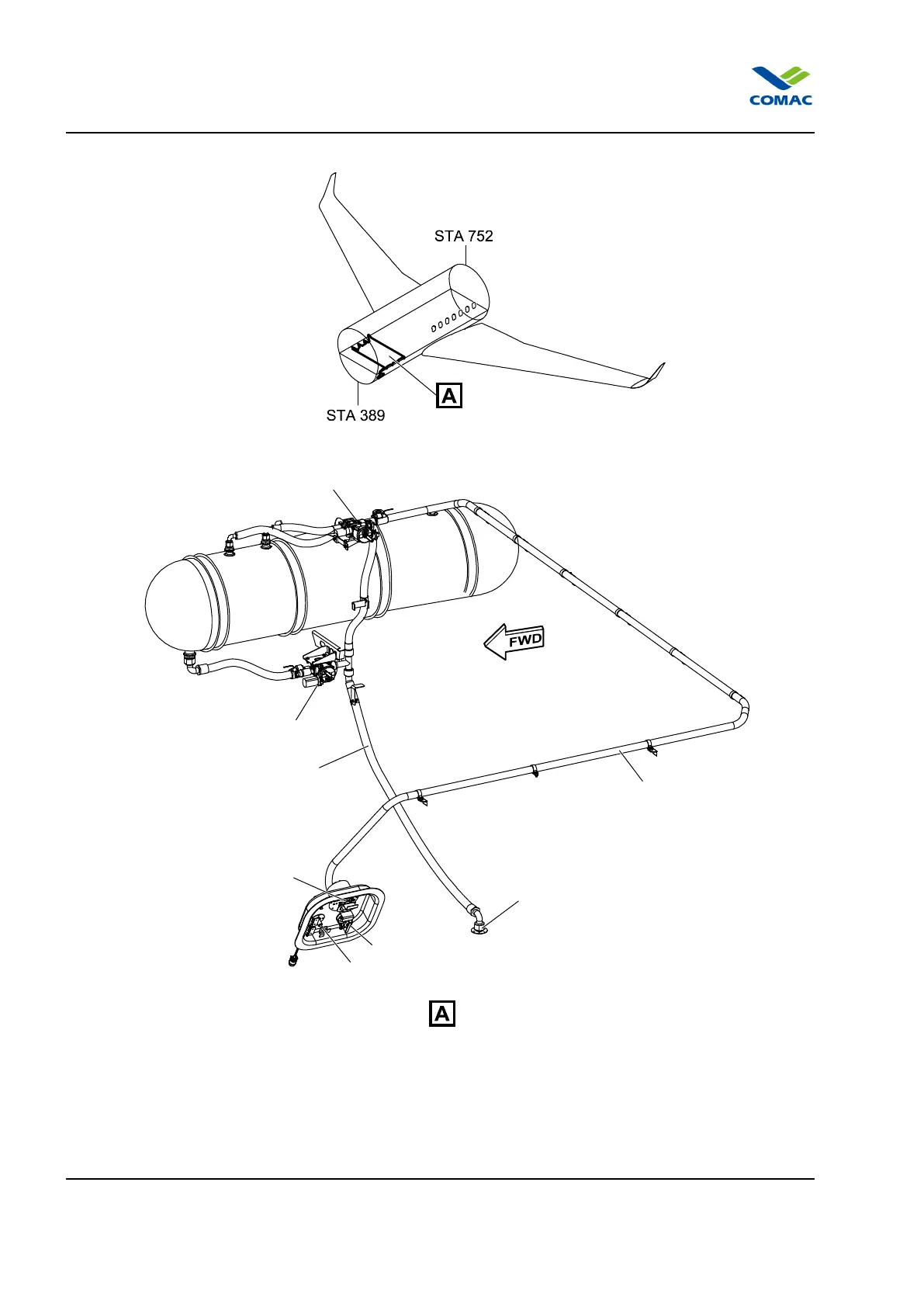

Figure2WaterService,IndicationandControl-SystemDescription(Sheet1of1)
ARJ21-A-13-12-23-01A-226A-A
Issue001,2023-01-29
Endofdatamodule
Page4of4
Applicableto:ALL
