ARJ21-SVV19-13120-00

RampServicingOperation

Instruction

ICN-ARJ21-A-192002-A-SVV19-92337-A-001-01

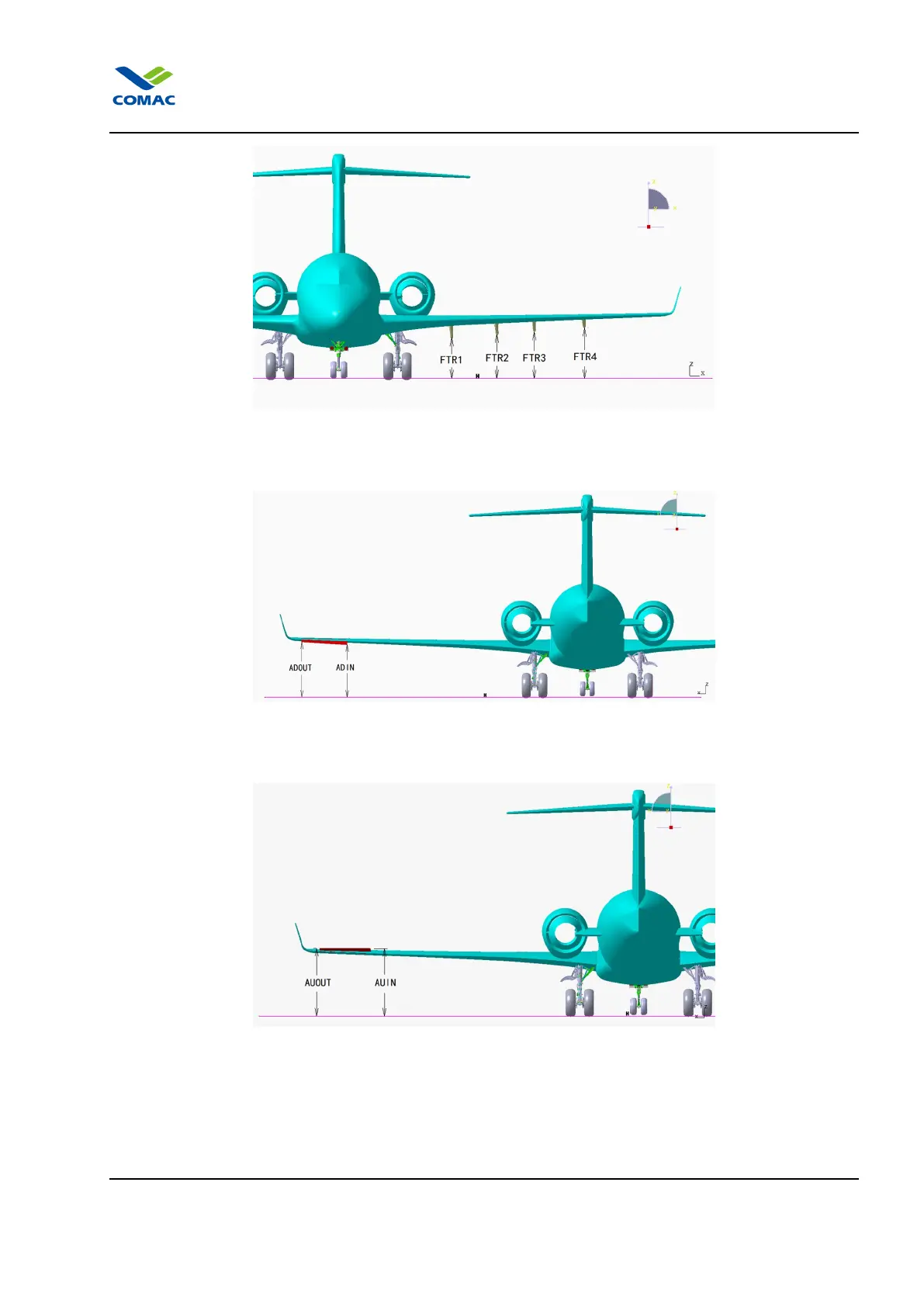

Figure5GroundClearancesofFlapTrackFairing(Sheet1of1)

ICN-ARJ21-A-192002-A-SVV19-92339-A-001-01

Figure6GroundClearancesatAileronDownStatus(Sheet1of1)

ICN-ARJ21-A-192002-A-SVV19-92338-A-001-01

Figure7GroundClearancesatAileronRaiseStatus(Sheet1of1)

ARJ21-A-13-12-00-02A-030A-A

Issue001,2023-01-29

Applicableto:ALL

Page25of26
