ComAp InteliPro - Page 36

InteliPro, SW version 1.4, ©ComAp –April 2014
InteliPro 1.4 Comprehensive Guide - rev. 1
2-14
The IDMT overcurrent function provides also the mechanism of time-dependent resetting curves of the
time delay after the current decreases to or below the nominal current. This mechanism respects the

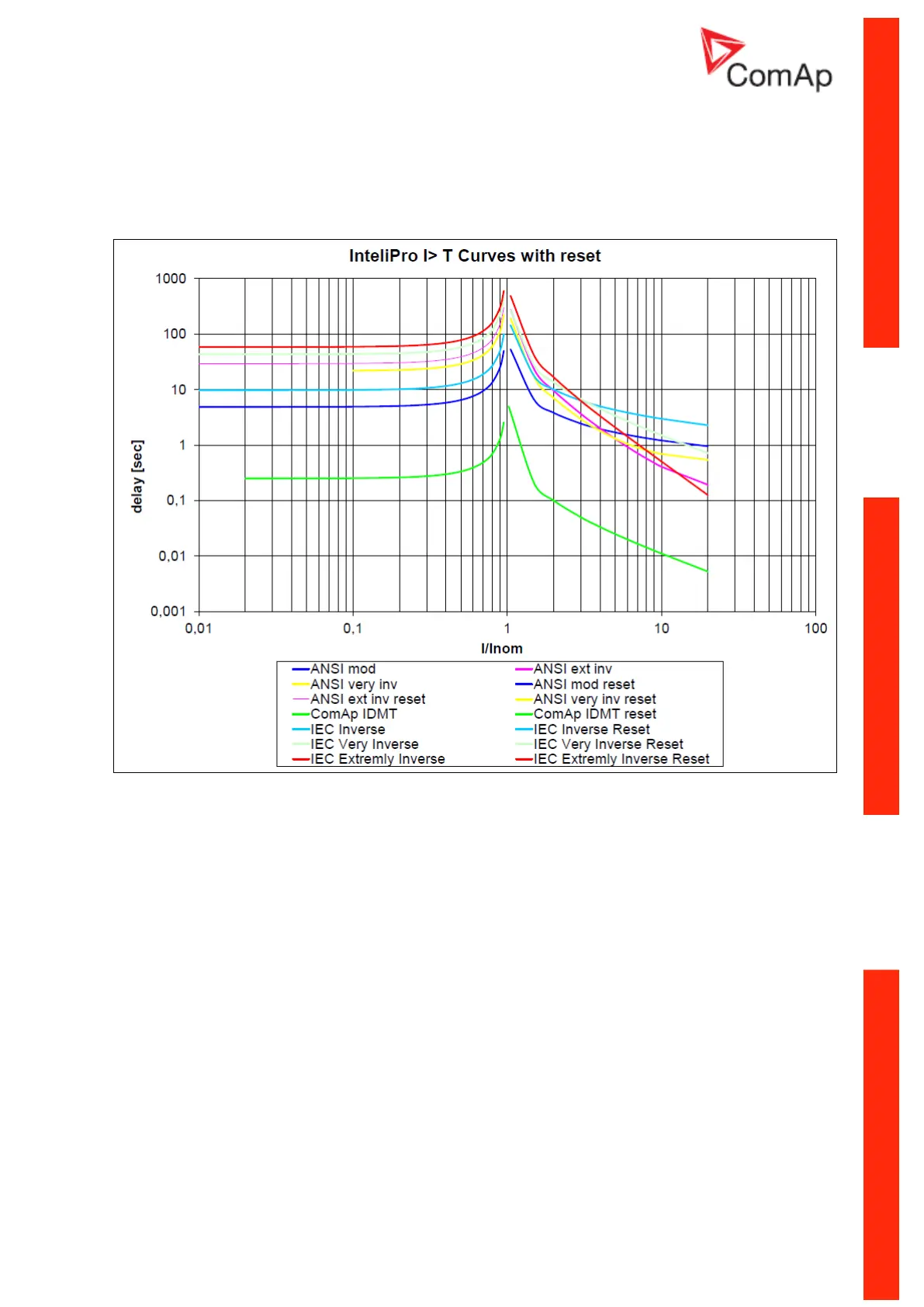

cooling characteristics of the protected device. See the picture below for the complete curves shape
including the reset characteristics:
