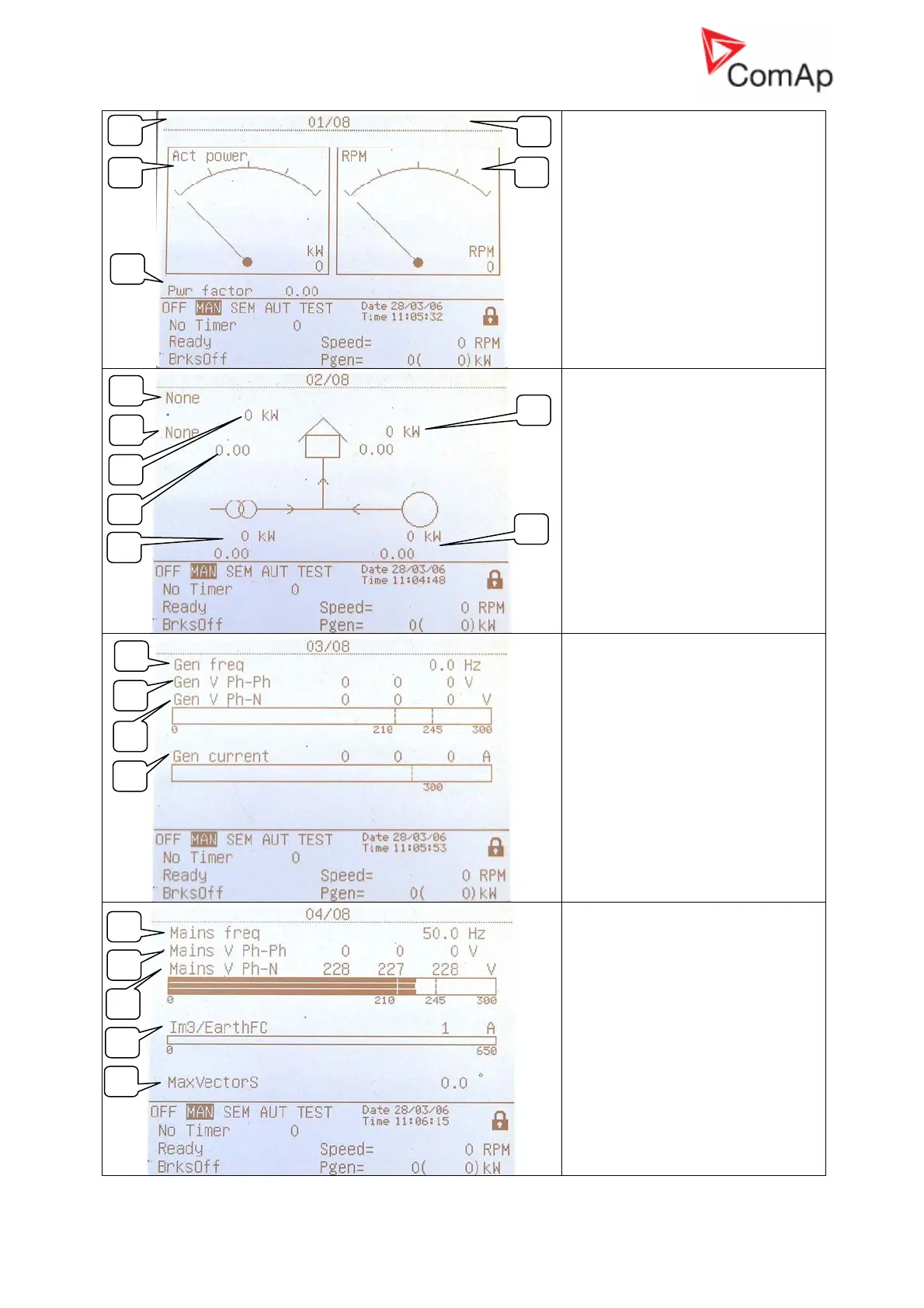

ComAp InteliSys SPI - Page 13

InteliSys
NT
-AFR-Abstract, SW version 1.0, ©ComAp – December 2006 13
IS-NT-AFR-1.0-Abstract.pdf
1. Remote communication
indication and access lock
indication (symbol is visible
when Access lock BI is active).
2. Actual gen-set power.
3. Measure screen address. For
jump to this screen set this
number from the numeric
keypad.
4. Actual engine RPM.
5. Actual power factor.
1. Power control mode (Island /
BaseLd / BldEmLm / PwrI/E /
TbyPwr)
2. PF control mode (Island /
BasePF / PF I/E)
3. Required power value
4. Required PF value
5. Actual Mains active power and
PF values
6. Actual load active power and PF
values
7. Actual gen-set active power and
PF values
1. Generator frequency
2. Generator voltage phase-phase
3. Generator voltage phase-
neutral + triple bargraph
4. Generator current + triple
bargraph
1. Mains frequency
2. Mains voltage phase-phase
3. Mains voltage phase-neutral +
triple bargraph
4. Mains current (3
rd
phase)/ Earth
fault current
5. Maximal vector shift
1
2
3
4
5
1
2
3
4
1
2
3
4
5
1
2
3
4
6
5
7
