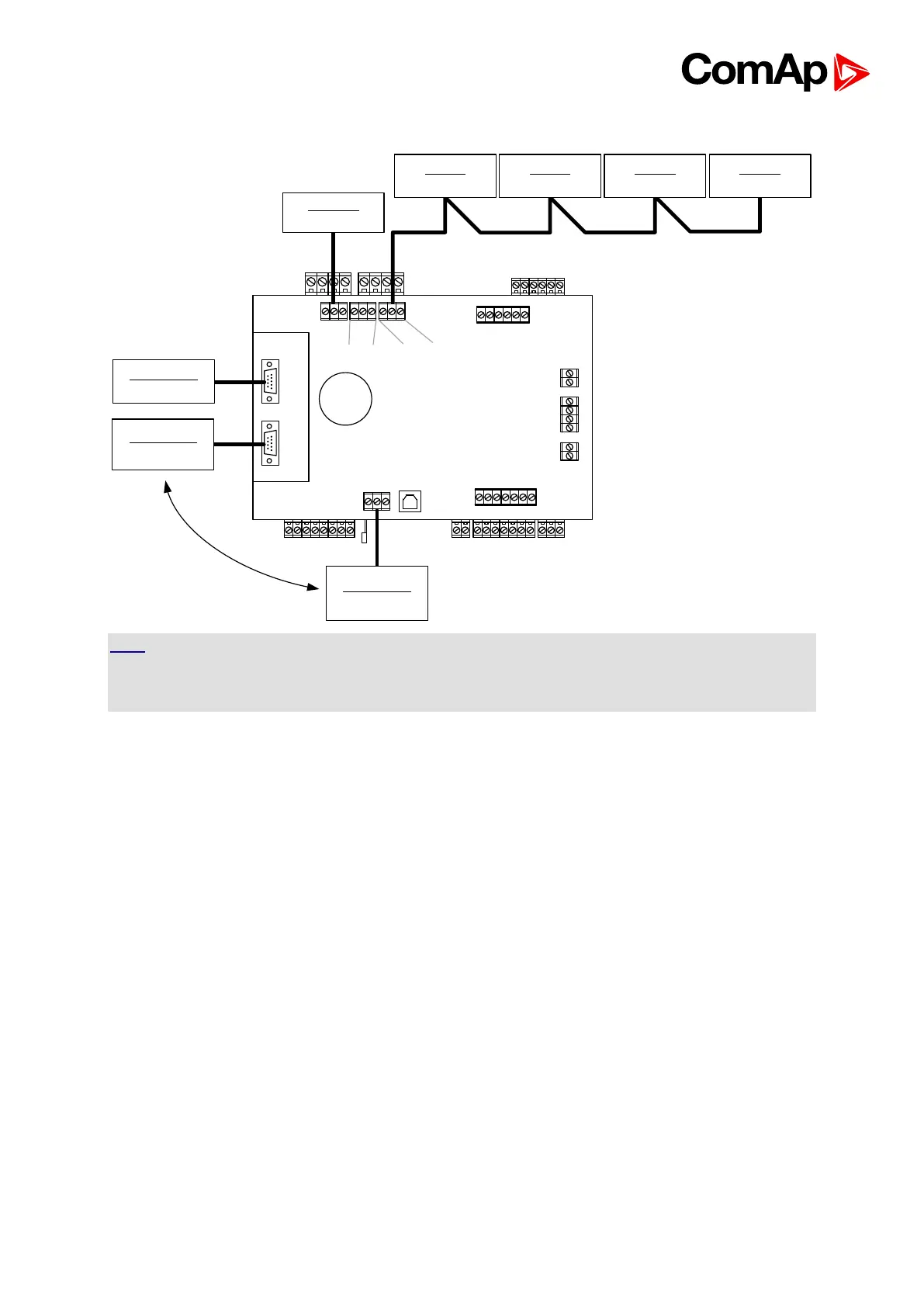

6.1.8.5. Connection to IS-NT-BB
RS232(1)
RS485(1)
CAN1
Extension
CAN2
Intercontroller
Terminal 1*:
InteliVision 8
Channel 1
InteliVision 8
Channel 2
InteliVision 8
Channel 3
InteliVision 8
Channel 4
InteliVision 8
Communication:
InteliVision 8
RS232(2)
Communication:
InteliVision 8
RS485(2)
Communication:
InteliVision 8
HINT
*Up to three displays could be connected with IS-NTC-BB via RS 485(1) – Display.
Communication on RS232(2) can be switched to RS485(2) so one InteliVision can be
connected to these two ports only.
