INSTALLATION GUIDE FOR mBDA OD SERIES
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 47

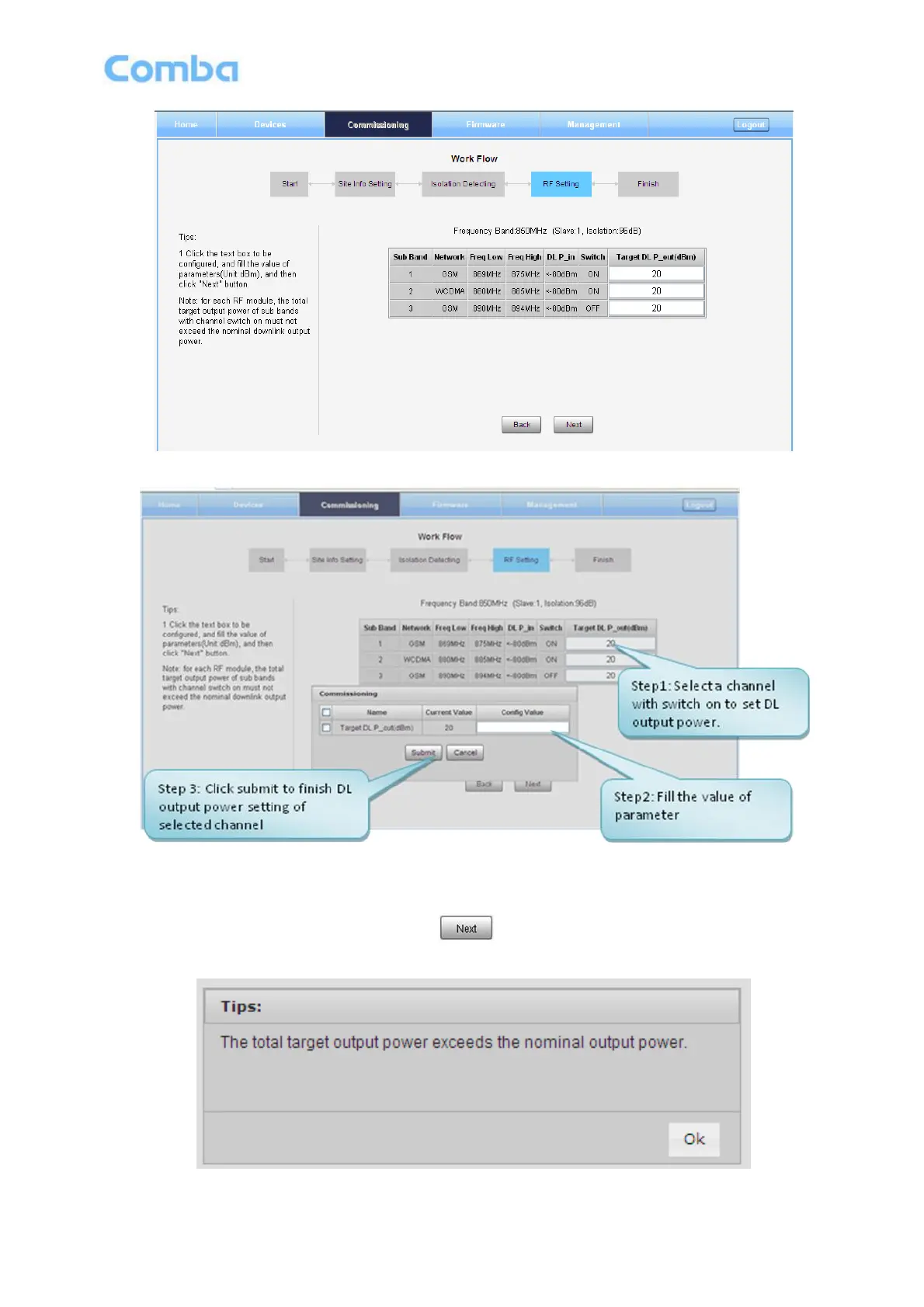

Figure 58: Commissioning Procedure – DL Output Power Setting Screen
Figure 59: Commissioning Procedure – DL Output Power Setting
NOTE: For each RF module, the total target output power of all sub-bands which channel switch is on must
not exceed the nominal downlink output power (27, 30, 33dBm); if yes, Tips window will pop-up shown as
Figure 59. Finish the output power setting, click button , go to Finish Screen shown as Figure 60.
Figure 60: DL Output Power Over Exceed
