Storage Loading System MkII
38
The flat packed version of the Loading System MkII must be always lifted with
a fork lift truck, or equivalent vehicle, and the forks always be placed
underneath the horizontal chords of the Bottom Frame, see Figure 33.
Remember to only lift one unit at a time.

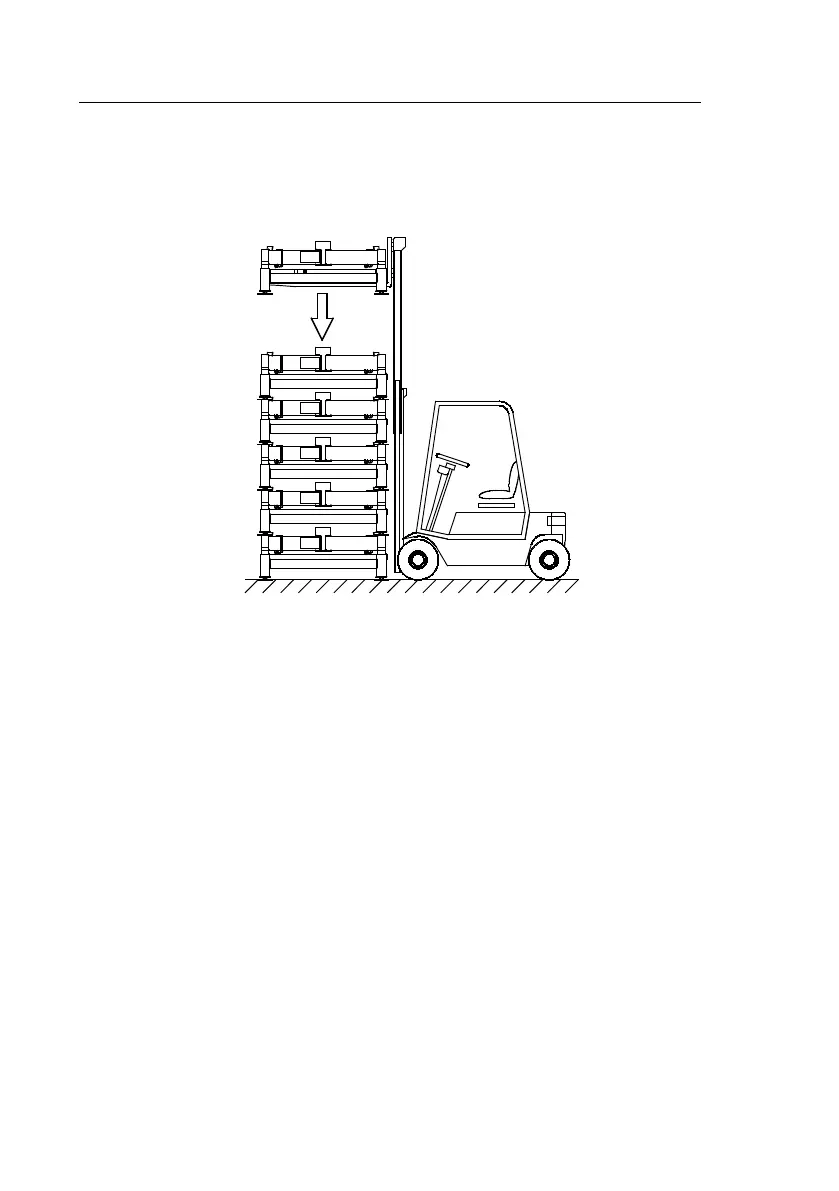

Figure 33. Placement of the 6th packed Loading System MkII with a fork lift
truck.
SkyReach Anchor
As already shown in the Assembly chapter, the SkyReach Anchor can be
folded together to ease packing and transportation.
