Assembly Loading System MkII
34
10.3 It is recommended to attach the slings to the lifting eyes on the
SkyReach. This slings will help correct positioning of SkyReach. The
lifting eyes on the SkyReach Brace are not designed as anchorage
points, avoid any usage other than stated in this User Instructions.
11. Use a crane to lift the assembled SkyReach Anchor and lower it into the
Top Column 4.7/SkyReach Adaptor 5.9, see Figure 30. Use the Reach
Hook to guide the SkyReach into place if needed. Make sure that the
correct length of the SkyReach is inserted, please observe the Insertion
Marking Label position, see Figure 30.

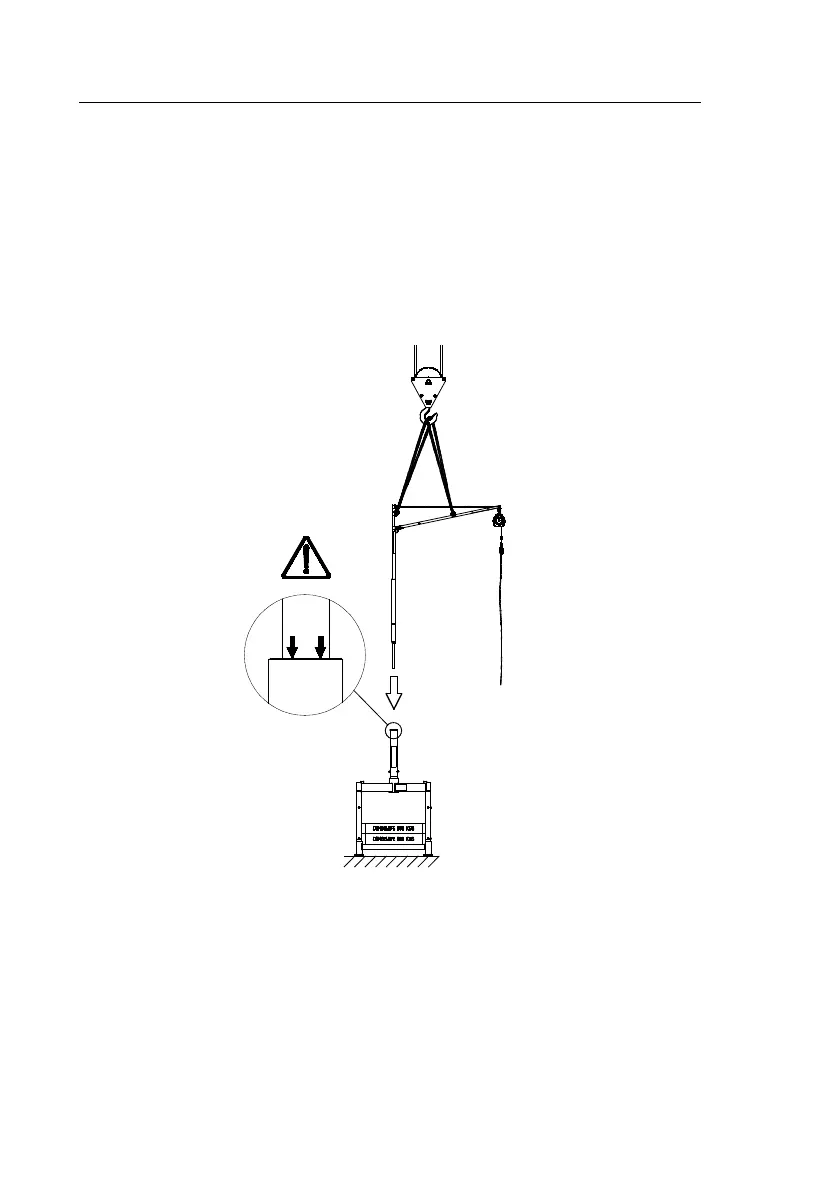

Figure 30. Placement of the SkyReach unit into Top Column 4.7. Beware of
the crane and its movement to avoid injuries.
12. Make sure that the steps in the safety check in the Maintenance chapter
are followed and executed. Now the Loading System MkII is ready to use!
Dismantling
The installation procedure should be performed in reverse order when
dismantling.
