Comelit Simplebus1 UT1010 - Programming of Specific Addresses

19
LL
S1 S2
S1 S2
2
7
3
1 2 3 4 6 75 8
=
25
70
58
37
ON
1 2 3 4 6 75 8
ON
1 2 3 4 6 75 8
ON
1 2 3 4 6 75 8
1
4 5
6
8

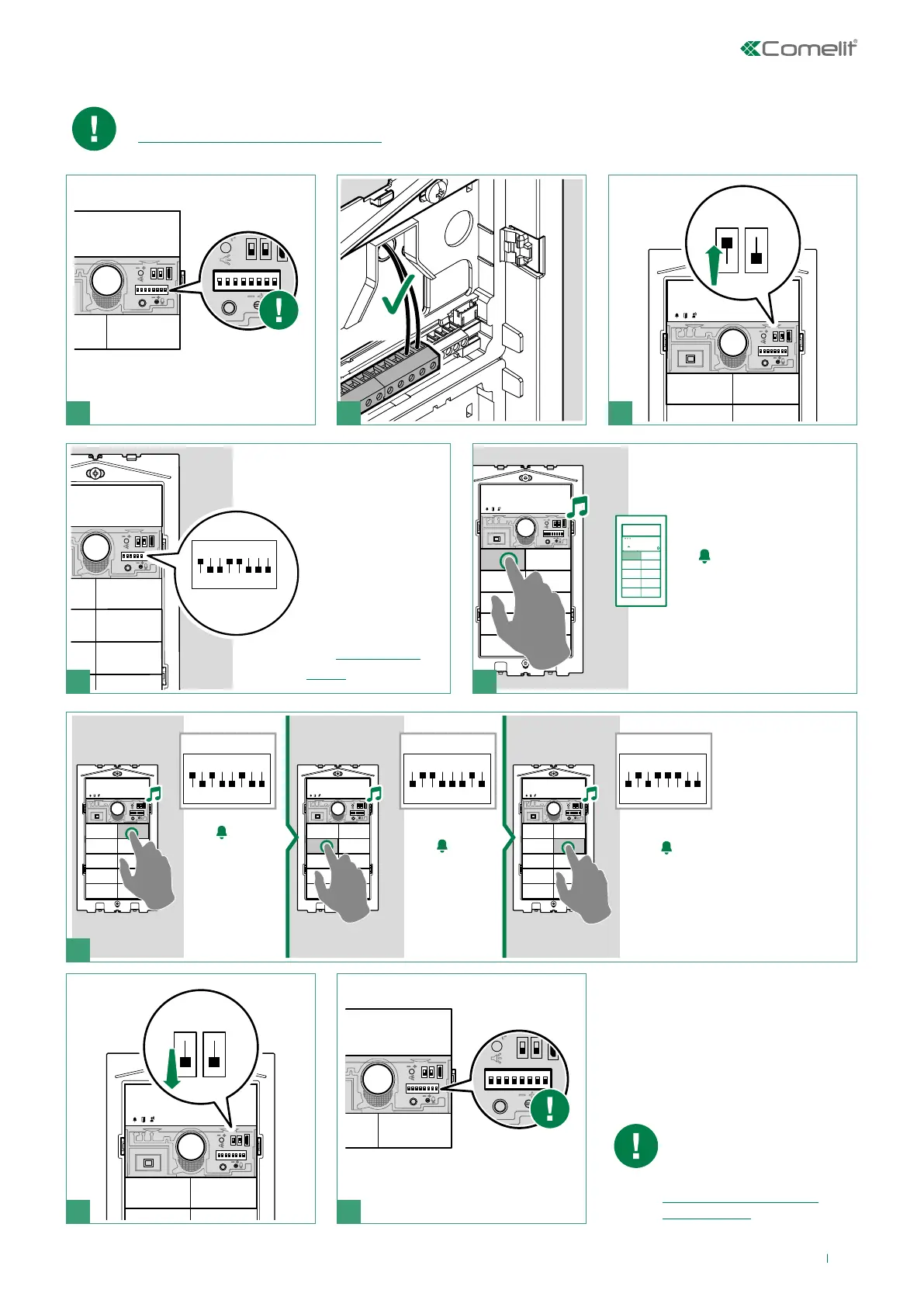

Programming of specific addresses
Make sure the button configuration (single/dual) is correct before proceeding with programming (see
“Configure button type (single/dual)”)
When programming is
complete, make sure the
button configuration is
correct (single/dual), see
“Configure button type
(single/dual)”)
Take note of the DIP-switch
settings
example:
code 25
example: code 37 example: code 70 example: code 58
Set the address of the
apartment you wish to
call (for example:25)
using the DIP-
switches
(see “Addressing
table” )
Press the button you
want to associate with
the call address set
using the DIP-switches
Repeat steps 4 and
5 to assign a specific
address to each button
Reset the configuration of the
DIP-switches
