Comelit Simplebus1 UT1010 - Installation; Flush-Mounted Installation Composition Table; Surface-Mounted Installation Composition Table

7
Installation

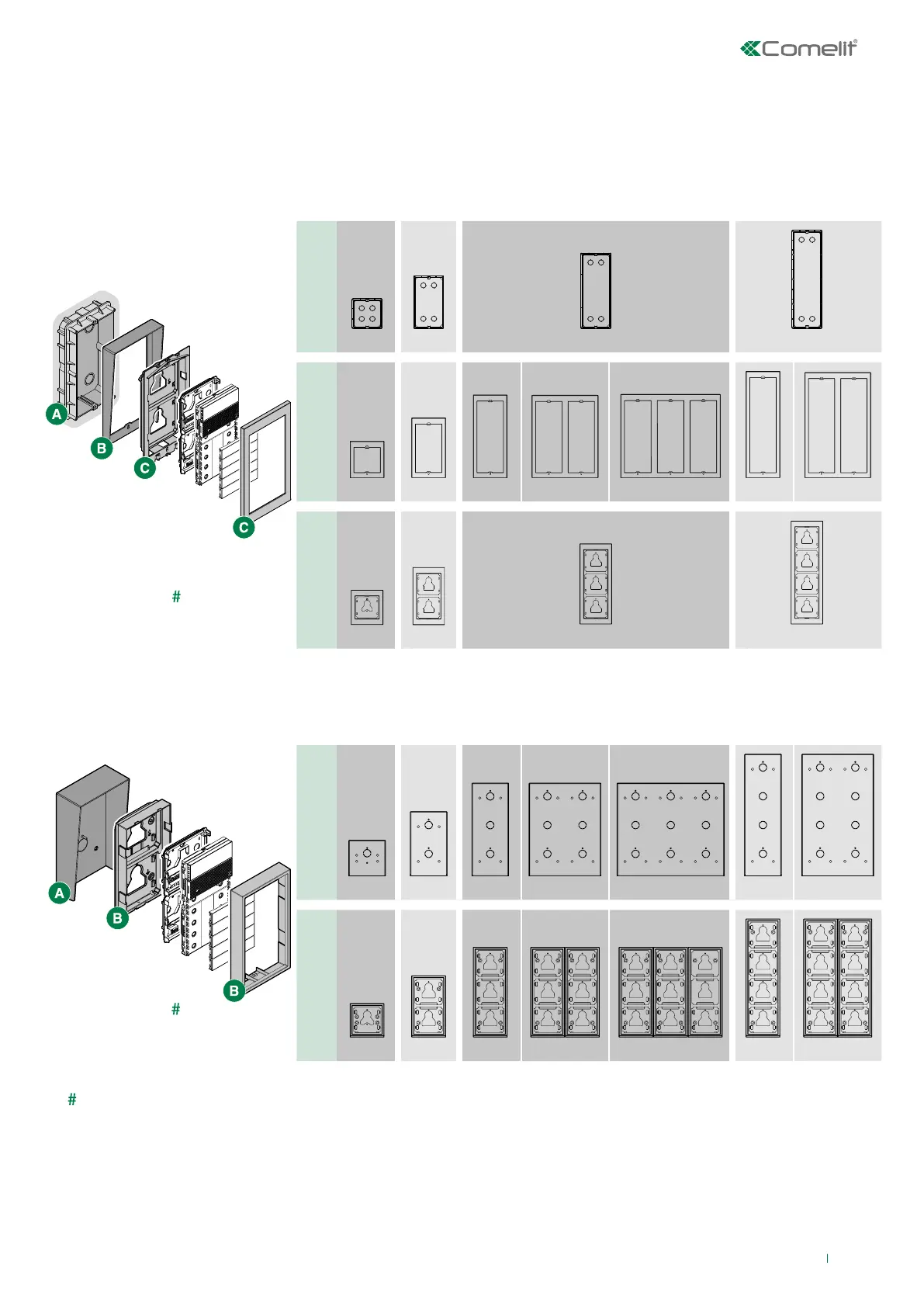

A = Flush-mounted box
B = Rain shield
C = Flush-mounted module holder
with finishing frame
Flush-mounted box
3110/1 3110/2 3110/3 3110/4
Rain shield
UT9181 UT9182 UT9183 UT9186 UT9189 UT9184 UT9188
Module holder/ finishing frame
UT9161 UT9162 UT9163 UT9164
A = Rain shield
B = Surface-mounted housing
with frame
Rain shield UT9191 UT9192 UT9193 UT9196 UT9199 UT9194 UT9198
Housing/frame UT9171 UT9172 UT9173 UT9176 UT9179 UT9174 UT9178
Optional
The entrance panel is available in flush-mounted or surface-mounted variants:
Flush-mounted installation composition table
Surface-mounted installation composition table
