Component List

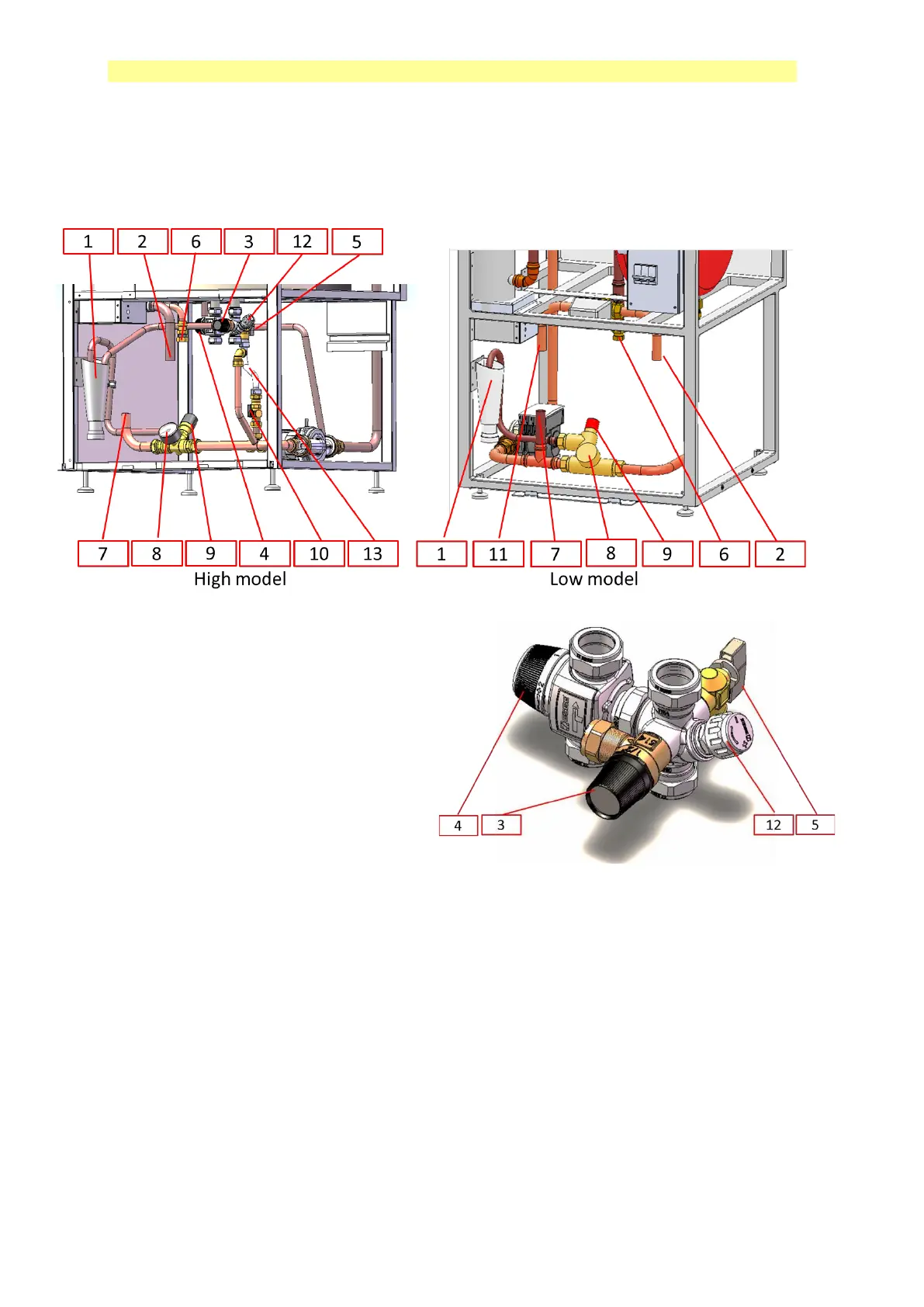

These images show the important components in the heat pump.
1. Waste water funnel, shall be
connected to floor drain.
2. Connection hot water tank.
3. Safety valve (10 Bar) for incoming
water.
4. Mixing valve, temperature limiter of
domestic hot water
5. Filling valve / drain
6. Connection supply line for supply
air units.
7. Connection of return water from
circulation water and possibly air
supply units, low model also
returns from hot water tank.
8. Pressure gauge for system.
9. Safety valve (2.5 Bar) for tank and
circulation water (system
pressure).
10. Filling / drain valve.
11. Connection supply line for
circulation water to the house.
12. Shut-off valve
13. Filler / drain hose
