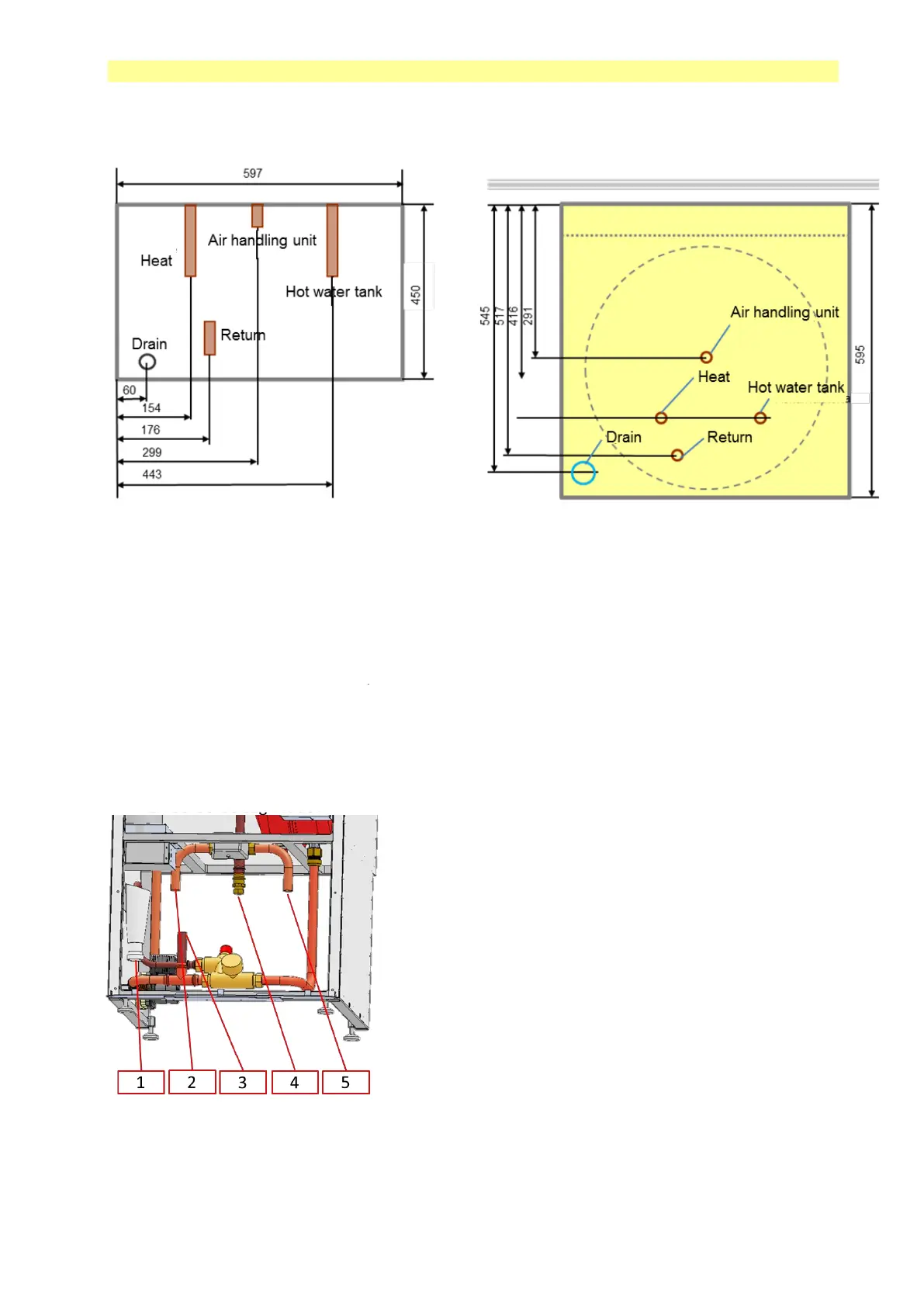

5.5 Dimensions and position of pipe connection RX35 / 50/65 - Low
model.
Pipe dimensions
Heat
Flow pipe, circulation water
Pipe Ø 22 mm
Return
Return pipe, circulation water
Pipe Ø 22 mm
Hot water tank
Connection hot water tank
Compression Ø 22 mm
Air handling unit
Connection of air supply units,
plugged in on delivery, optional
connected.
External screw DN15
Drain
Drain water discharge
PVC pipes 32 mm, ex M42x2
Pipe connections
1. Drain water, connected to floor drain.
2. Heat circulation water to the house.
3. Return from the house, hot water tank and optionally
air supply unit.
4. Connection for air supply units, optional.
5. Supply for hot water tank.
EX-35-50-65 Low model
