5.14
Connection of hot water tank - Low model
RX35 / 50/65 Low model.

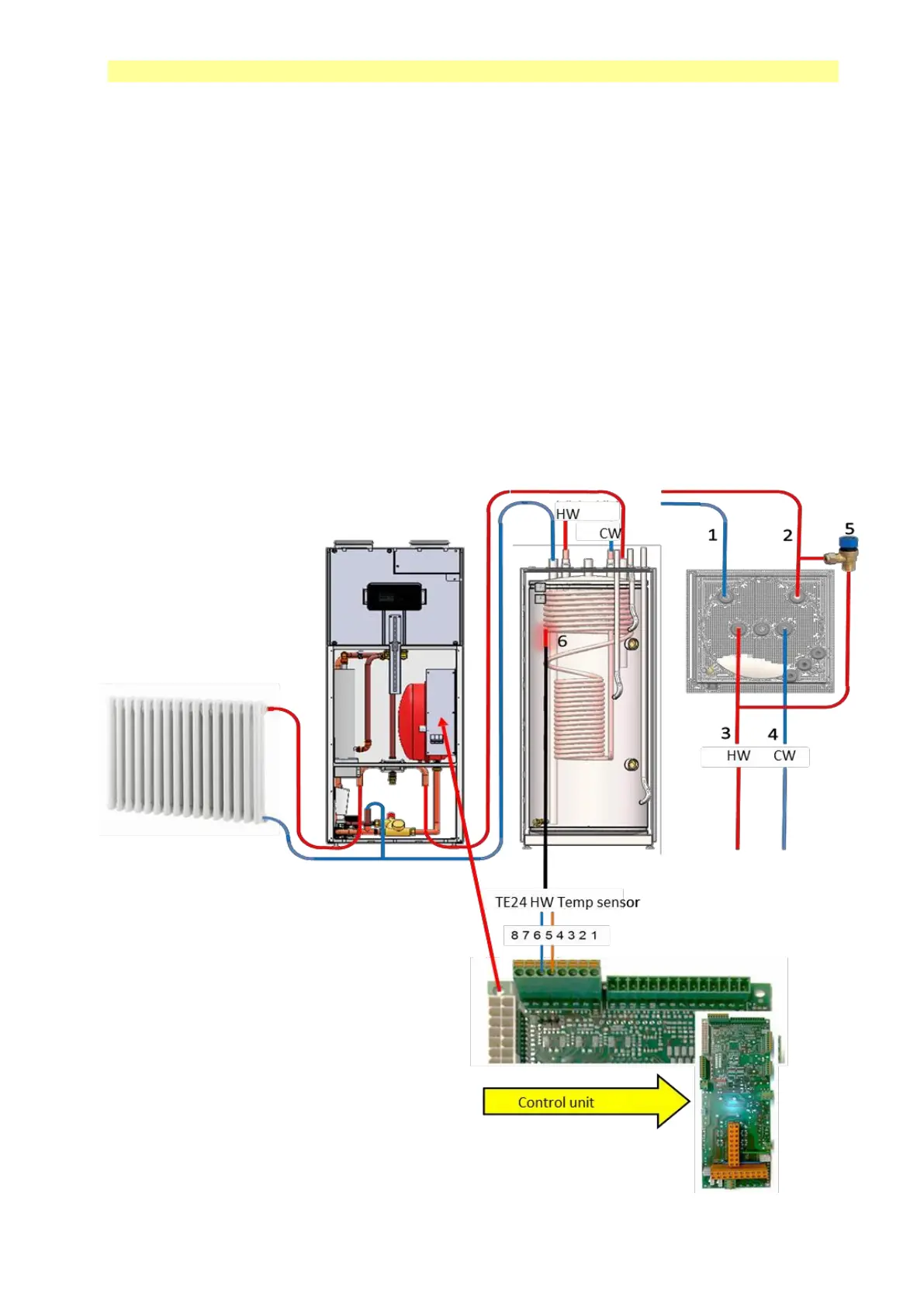

Connect return pipe (1) and supply pipe (2) between heat pump
and tank as shown. Connect the incoming CW = cold water (3)
and HW = hot water (4) to the hot water tank as shown.
A crane (5) for filling the circulation system must be mounted in
connection with the hot water tank.
Filling the circulation system should be carried out with hot water.
Sensor TE24 (6) is mounted in the hot water tank immersion pipe
or electricity. The sensor is properly fixed and heat-insulated from
ambient room air.
The sensor is connected to the
control unit, terminal block
X4, terminals 5 and 6.
