8.3
Connection of accessories.

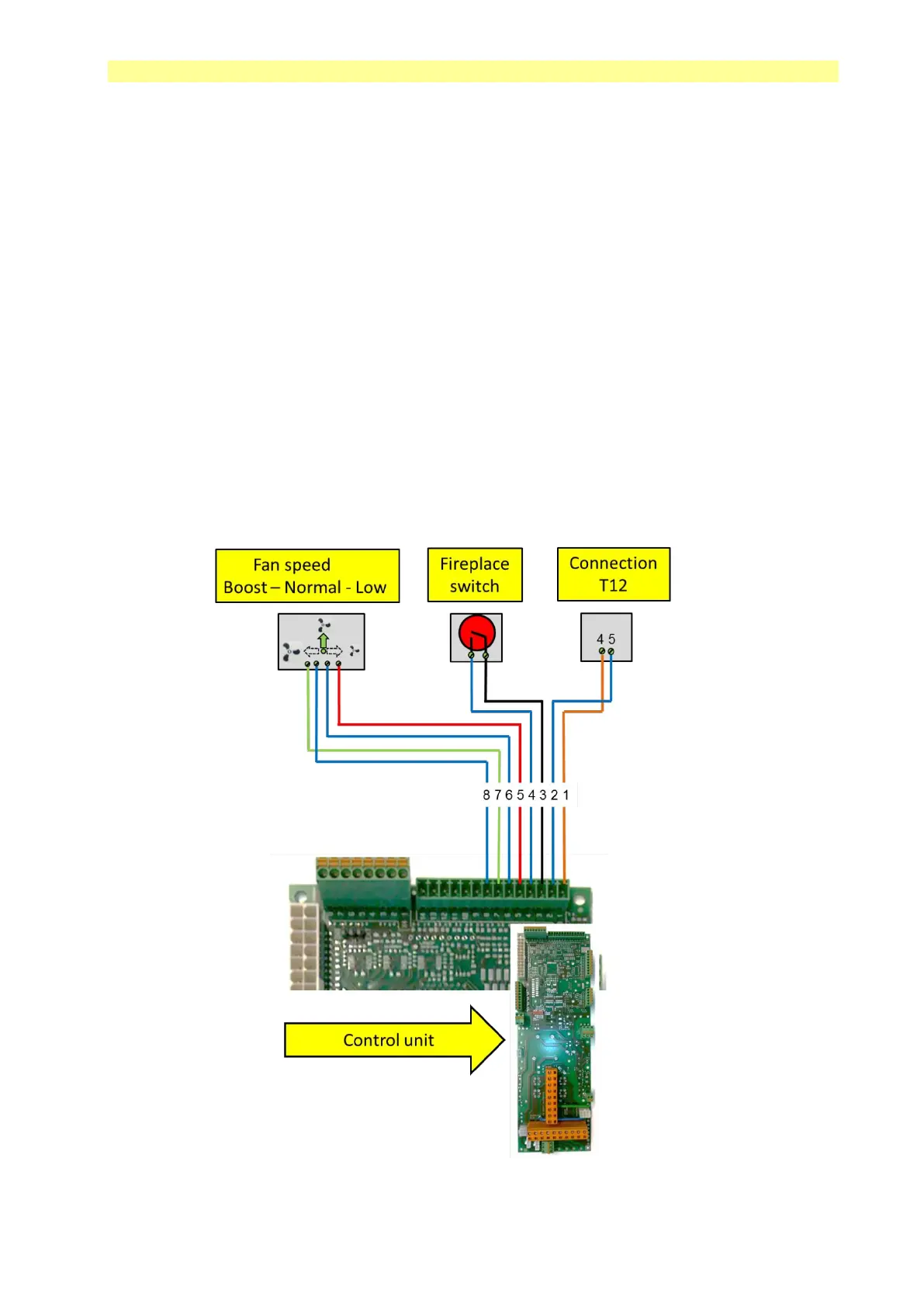

Fan control for air supply units T12 is used when the house is equipped with
ComfortZone supply air unit T12. Allows to control the heat pump fan and the
supply air fan assembly together.
Connects to terminal block X3, brown conductor to pin 1 and blue conductor to pin
2.
Fireplace switch is used to prevent smoke when a fireplace is lit, a push of the
button stops exhaust fan for 5 minutes (adjustable).
Connected to terminal block X3, terminals 3 and 4
Fan effect, low - normal - boost is used to regulate the ventilation in the house
with a switch which is connected to Plint X3, terminals 5-6-7.
The fan effect can also be easily controlled on the display unit.
Boost = (placement 6-7) The fan effect increases by 30% from normal value.
Normal = basic setting for the heat pump.
Low = (placement 5-6) reduction of fan power by 30% from normal value.
NOTE! Reverse numbering! Terminal 1 at the far right!
