MS-C75 User’s Manual
-20-
To setup the LCD, you need the component below:
1. A panel with LVDS interfaces.
2. An inverter for panel‟s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the connector to make a cable, because
every panel has its own pin assignment, so we do not provide a standard cable; please find
a local cable manufacture to make cables.

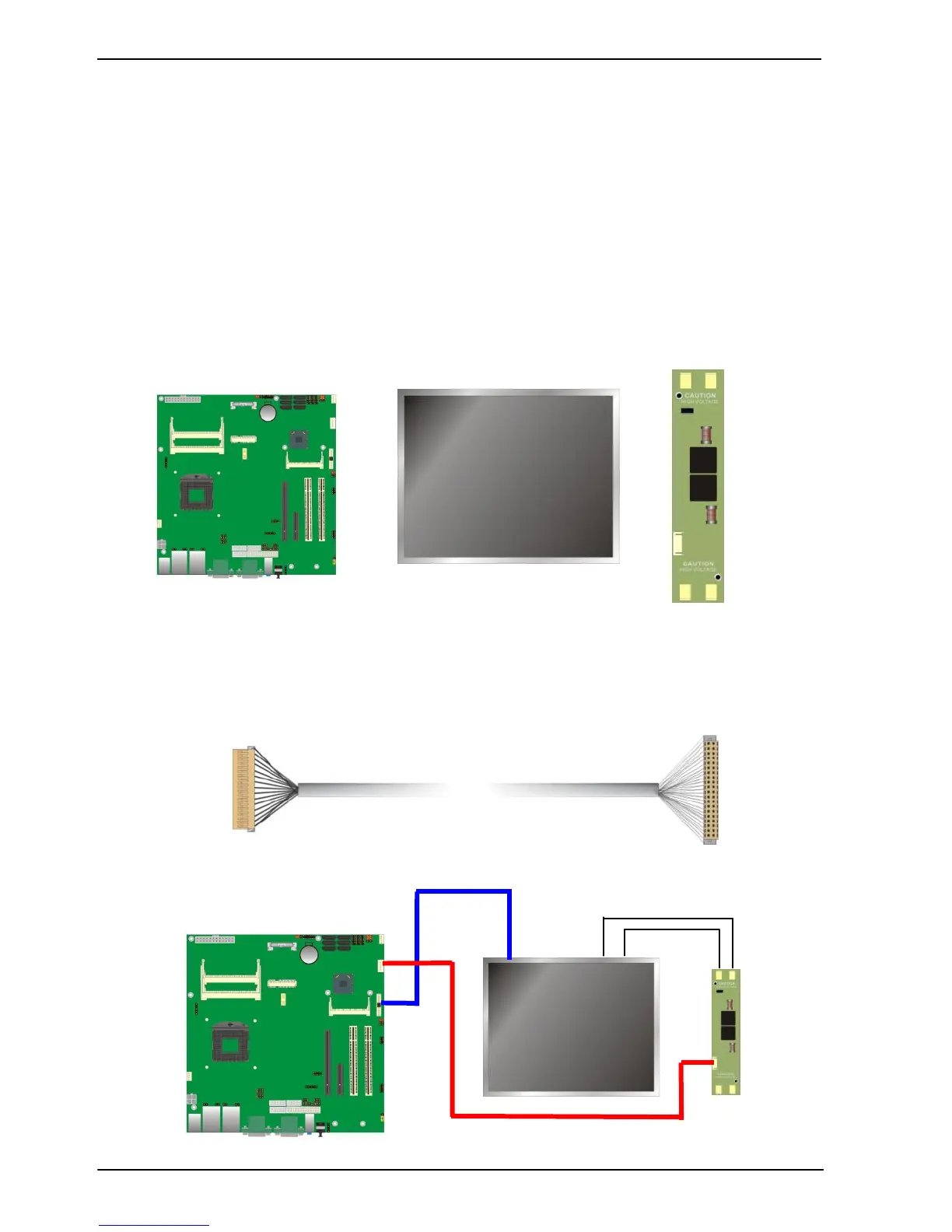

LCD Installation Guide:
1. Prepare the MS-C75, LCD panel and the backlight inverter.
2. Please check the datasheet of the panel to see the voltage of the panel, and set
the jumper JVLCD to +12V or +5V or +3.3V.
3. You would need a LVDS type cable.
4. To connect all of the devices well.
