► Door Clearances
Note: Figure 8 shows AC load center on cabinet right side to clarify door clearances. Optional AC load
center can be mounted per customer request on either side. However, AC load center should not
be installed on the left side for wall / H-frame mounting.

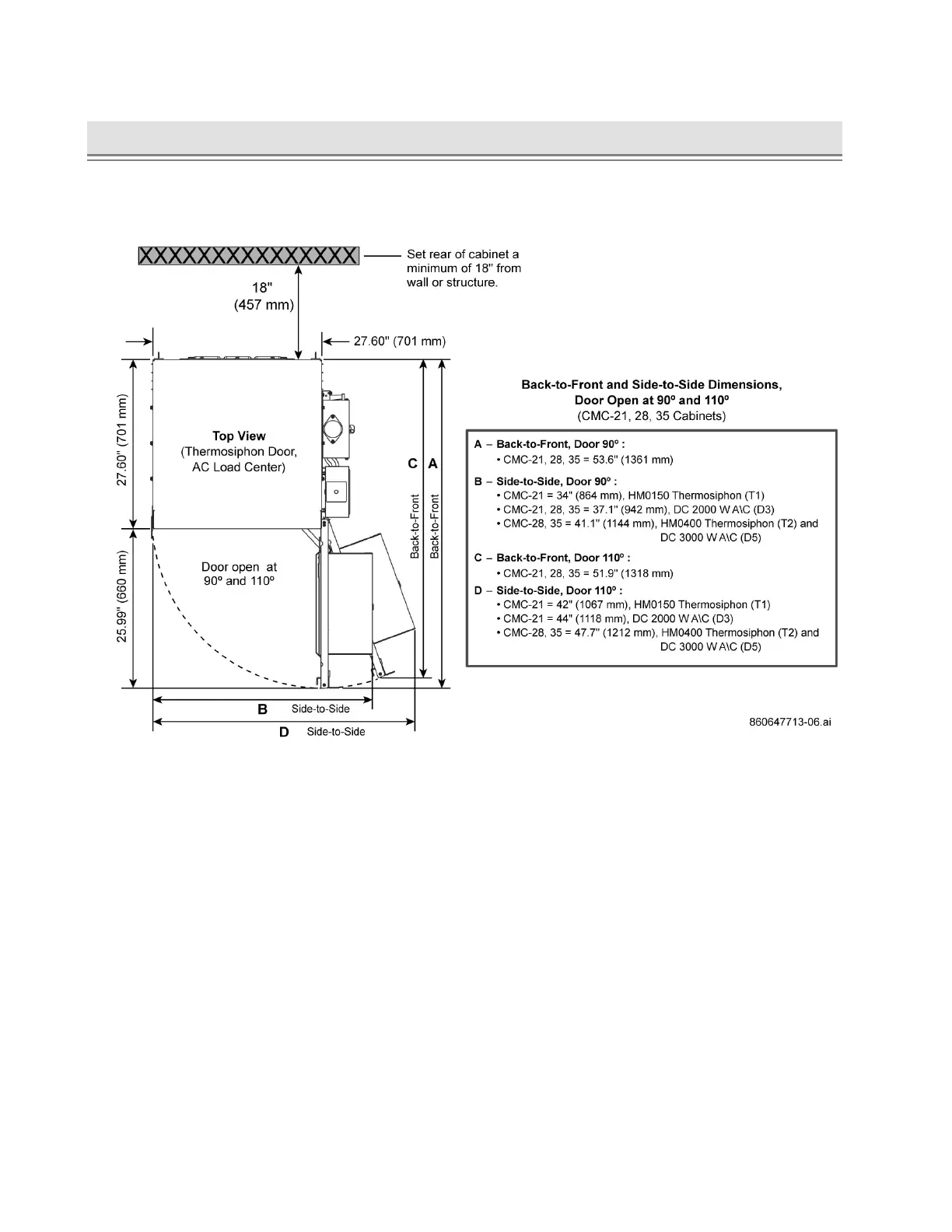

Figure 8. Top View, Door at 90º and 110º for CMC-21, 28 and 35 Cabinets
