CommScope Instruction Guide
860647713, Rev B, V.05
Page 14
38 Pages

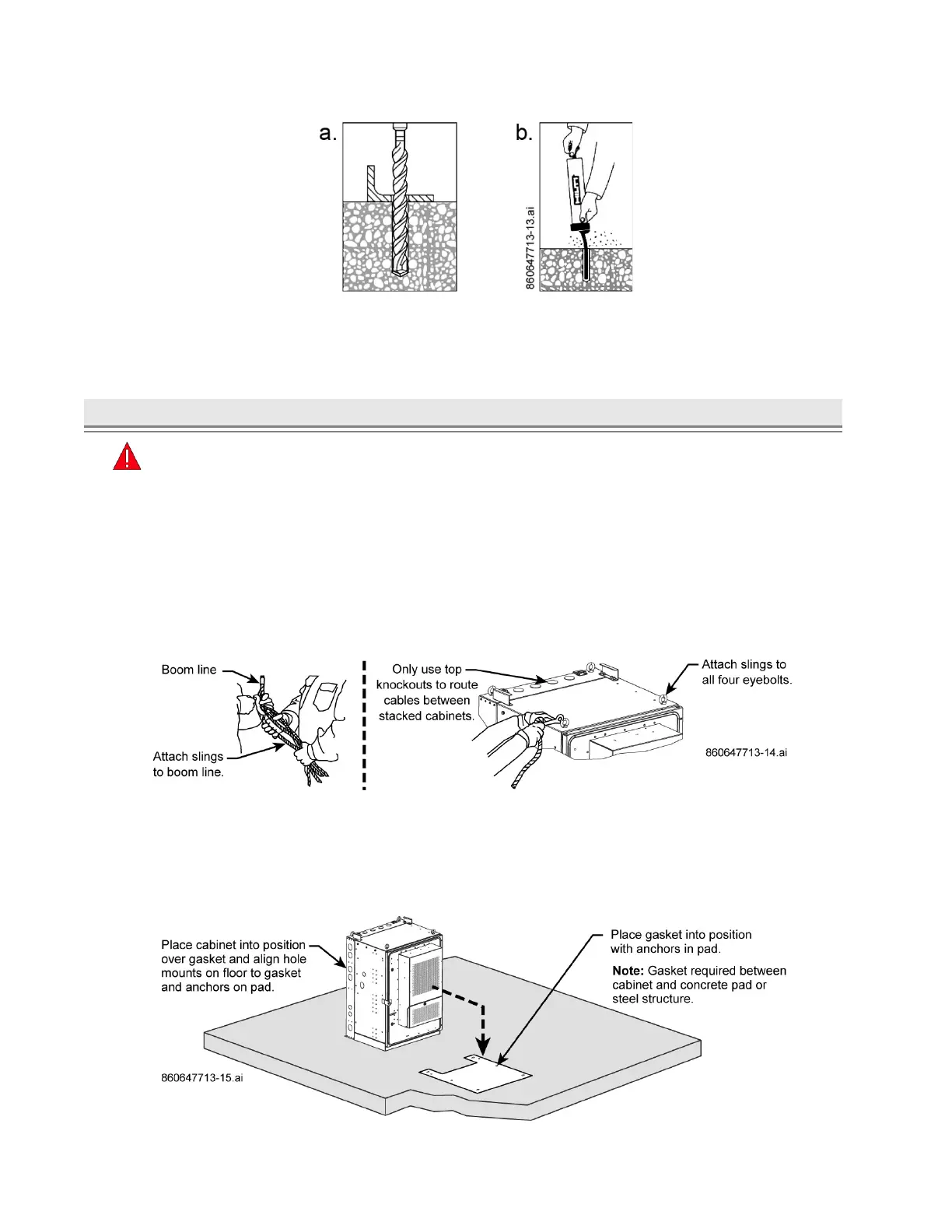

Figure 16. Drill Anchor Holes and Remove Debris
3. Place and align the gasket into position over the anchors.
■ Cabinet without plinth, Figure 14 and Figure 18; cabinet with plinth Figure 15 and Figure 19.
► Step 3. Place Cabinet onto Concrete Pad or Steel Structure
Caution:
■ Verify all anchor holes are in correct position before putting cabinet onto concrete pad; or if on a
steel structure, verify proper position and alignment per structure footprint.
■ Use an appropriate lifting device to place cabinet onto pad or structure.
■ Do not install batteries in cabinet or lift cabinet with batteries prior to cabinet pad installation.
To lift and position cabinet onto a concrete pad or steel structure:
1. Remove cabinet rear panel and use all four eyebolts to lift the cabinet, Figure 17
2. Attach four slings of sufficient length for safe operation to boom line with a B connecting link or clevis
and fasten other ends of slings to each eyebolt with a B connecting link or clevis, Figure 17.
Figure 17. Attach Slings to the Boom Line and Cabinet Eyebolts
3. With cabinet suspended, open the door and align floor holes to pad anchors, setting cabinet onto
gasket; Figure 18 without plinth, Figure 19 with plinth.
Note: If routing cable through pad (structure), remove floor knockouts before placing cabinet onto
gasket; Figure 14, Figure 15, Figure 24.
Figure 18. Example of Cabinet Installation without a Plinth on a Concrete Pad
