Material ID 860647713
Rev B, V.05, February 2022
Page 13
38 Pages

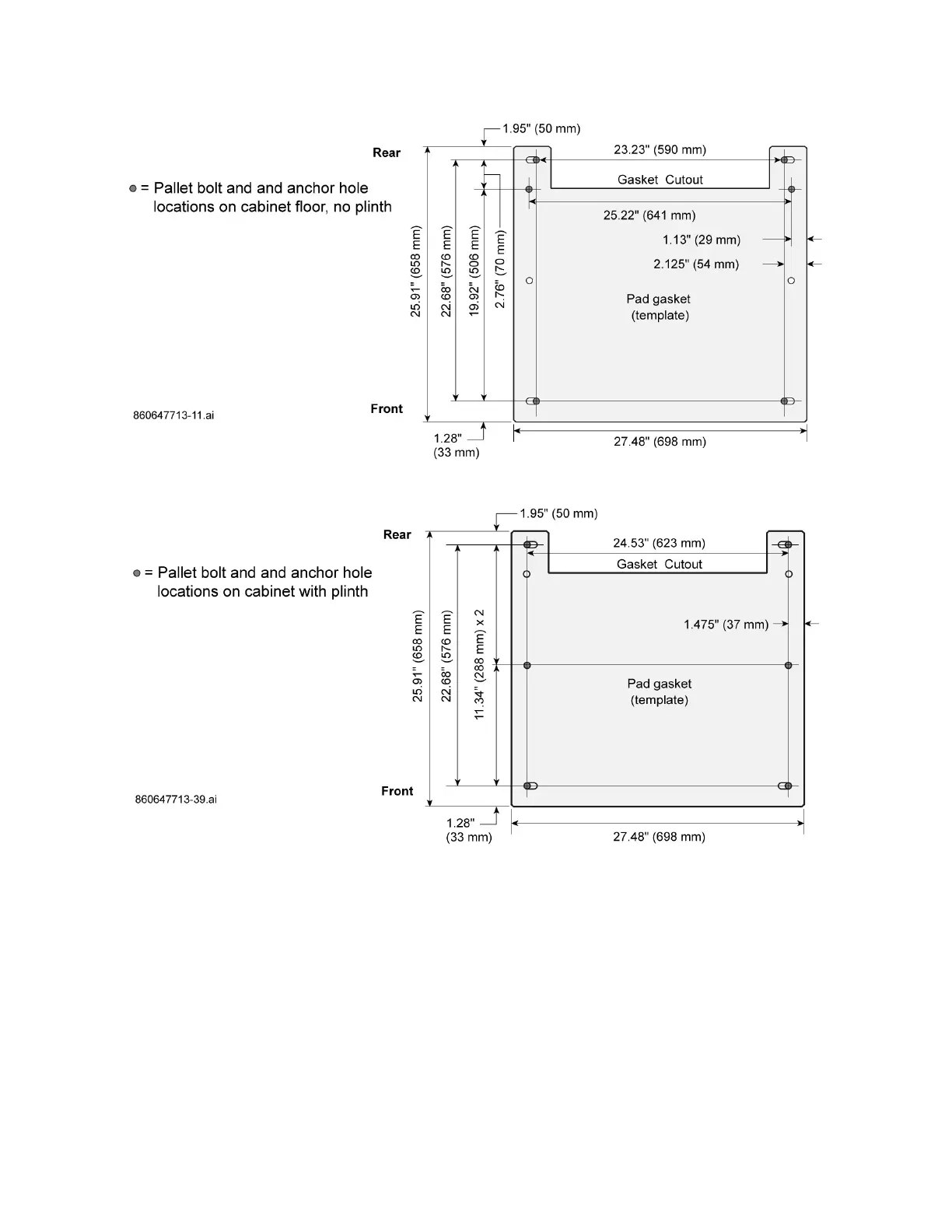

Figure 14. Gasket (Template) Required Between Cabinet without Plinth and Pad or Structure
Figure 15. Gasket (Template) Required Between Cabinet with Plinth and Pad or Structure
To prepare the pad:
1. Place gasket (template) onto pad in location where cabinet will be installed and mark front and rear
anchor locations per Figure 14 for cabinet without plinth and Figure 15 for cabinet with plinth, then
remove the gasket.
2. Do the following, Figure 16:
a. Drill six holes using the correct diameter drill bit to fit anchors in place, and to correct depth.
b. Remove drilling debris with a blowout bulb or compressed air, then clean pad of dirt and debris for
proper cabinet leveling.
