Pole mount installation

There are two orientations for pole mount installations:

• Vertical pole mount

• Horizontal pole mount

NOTE

The minimum pole diameter requirement is 4'' (102mm).

Vertical pole mount

1 Attach mounting brackets to mounting plate.

NOTE: The torque requirement for the bracket mounting screws is 5-6 in-lbs.

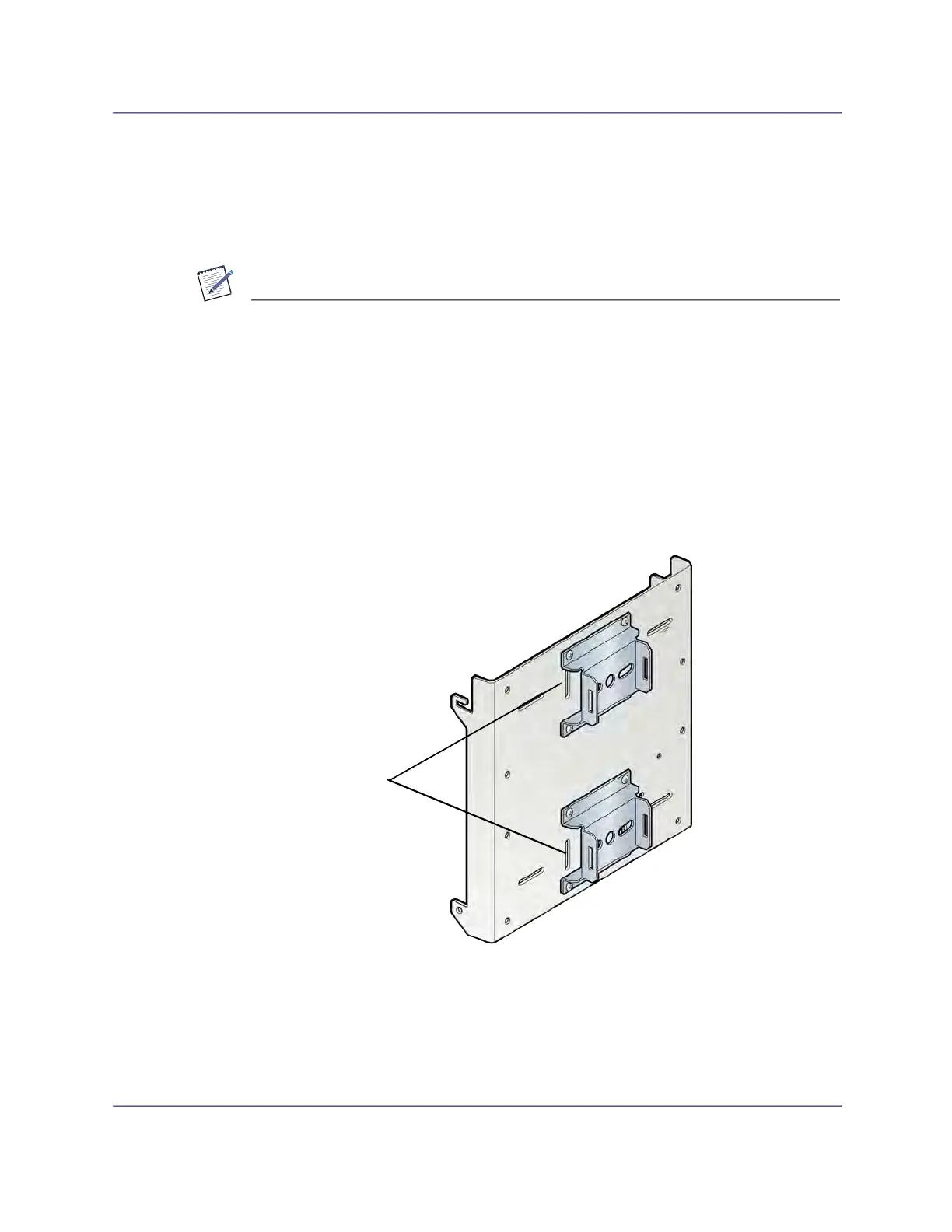

2 Slide the adjustable clamp through the slots on each RP mounting bracket on the

RP plate.

Slide adjustable

clamp end

through slots
