Ceiling mount
Mounting the Radio Point (RP) above or on the ceiling tile requires the following
hardware provided by CommScope:
• Radio Point mounting plate and 4 screws
• Octagon box mounting plate and 2 screws
• 4" octagon box, 1-1/2" deep with 1/2" side cutouts
• Clamp with screw - not required for flown mount option

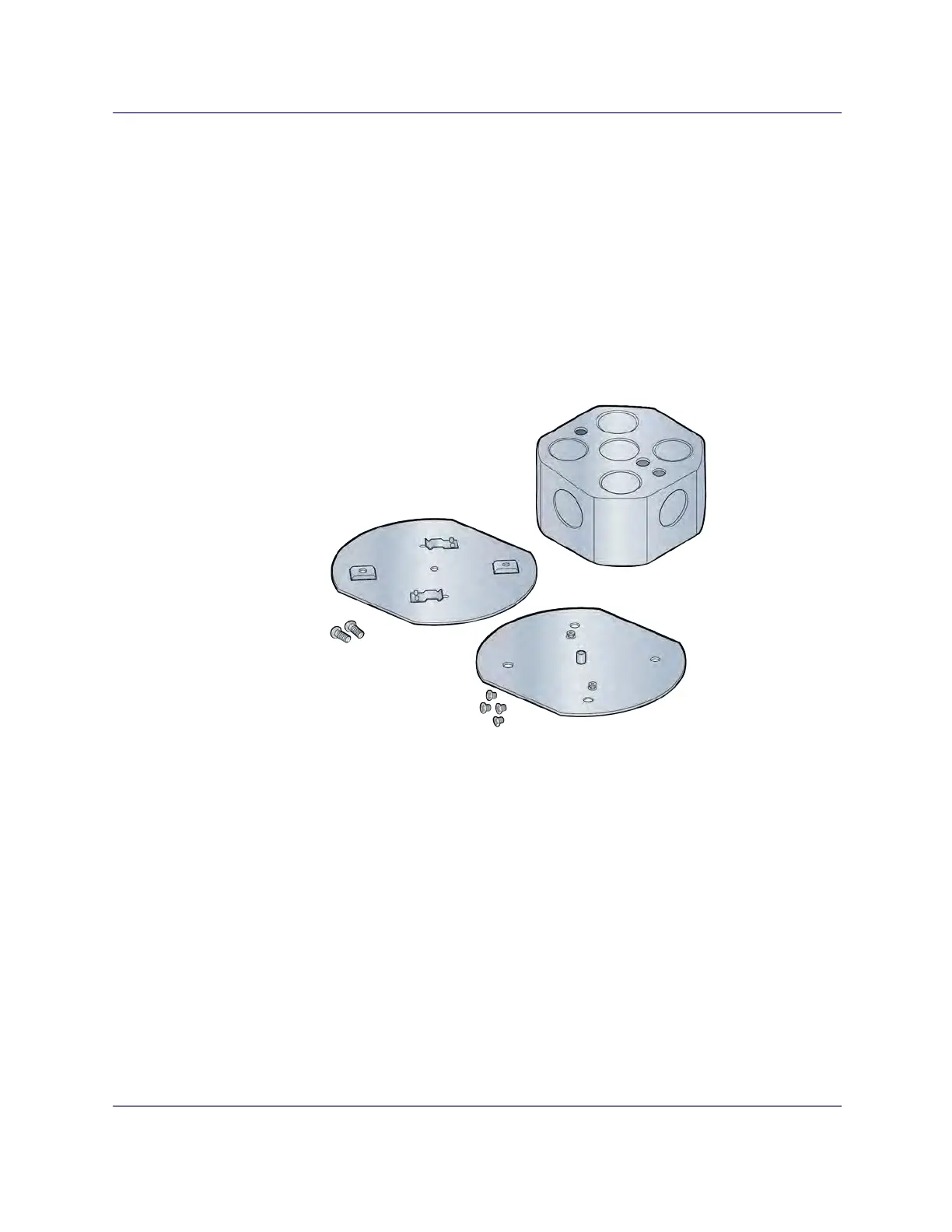

Figure 6-1. CommScope ceiling mount kit contents
Octagon box
Clamp with
1 screw
Mounting plate for octagon
box with 2 screws
Mounting plate for
RP with 4 screws
