Chapter 4 RP5100i installation
4-22 M0303A2 4.5.01 September 2020
D
R
A
F
T

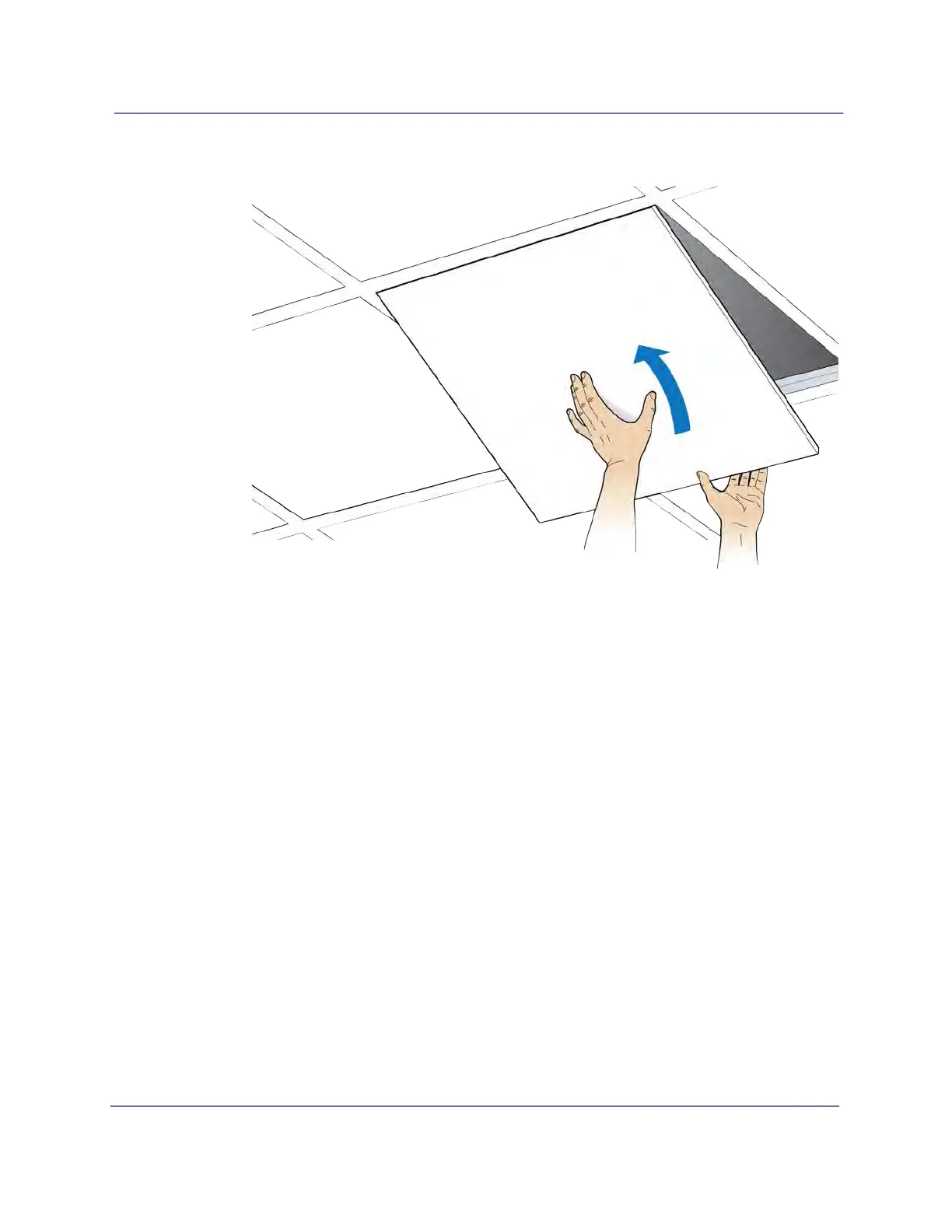

10 Replace the ceiling tile.
Flown mount
The Radio Point can be flown mounted on the end of a rod. This configuration is used
for building where there are no drop ceilings.
Mounting the Radio Point (RP) in the flown configuration requires the following
hardware provided by CommScope in the mounting kit:
• Radio Point plate and screws
• 4" octagon box, 1-1/2" deep with 1/2" side cutouts
NOTE: Remove the top, middle cutout.
• Clamp and screw – this hardware is not required for the flown mount option
