Ceiling mount
Mounting the Radio Point (RP) above or on the ceiling tile requires the following
hardware provided by CommScope:
• Radio Point plate and screws
• 4" octagon box, 1-1/2" deep with 1/2" side cutouts
• Clamp and screw

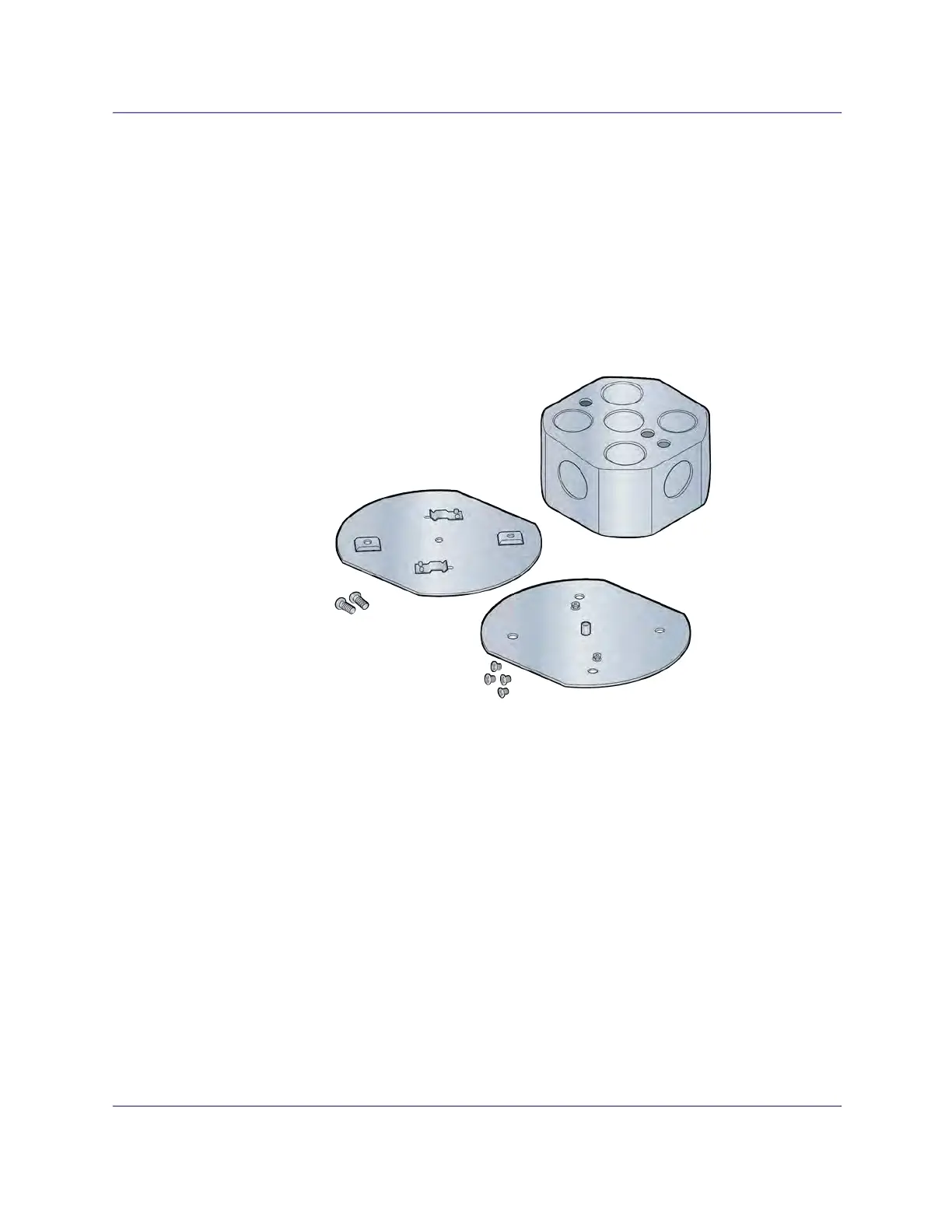

Figure 4-1. CommScope ceiling mount kit contents
Octagon
box
Mounting plate for
octagon box with 2
screws
Mounting plate for RP
with 4 screws
