Pole mount

The Radio Point can be pole mounted. This configuration is used for building where

there are no drop ceilings.

Mounting the Radio Point (RP) on a pole requires the following hardware provided by

CommScope in the mounting kit:

• Mounting bracket

• Screws

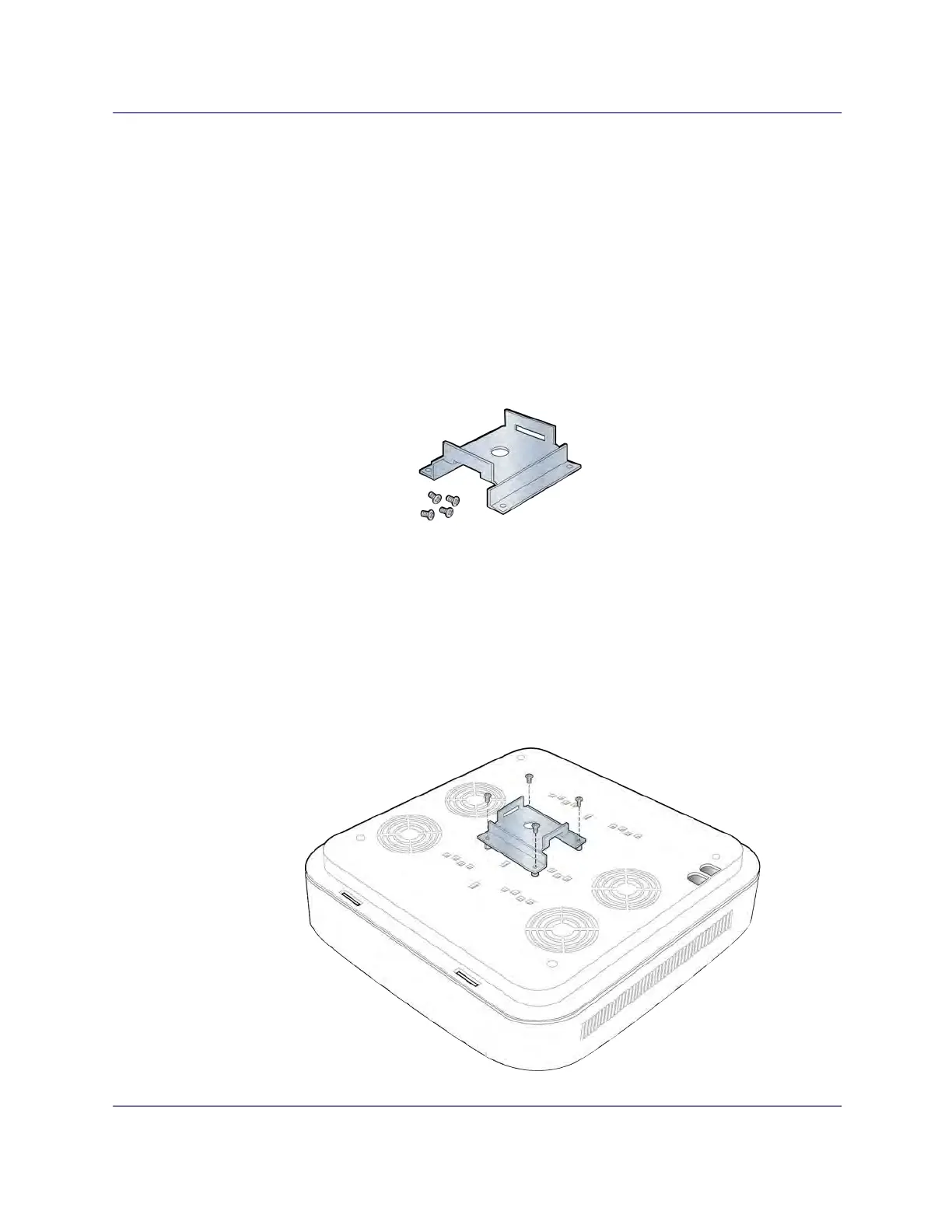

Figure 4-4. Mounting bracket kit contents

Mounting the Radio Point (RP) on a pole requires the following hardware provided by

the system integrator:

• Adjustable clamp at least 2 inches larger than the circumference of the pole

Pole mount installation

1 Attach the bracket to the Radio point.
