Chapter 5 RP5100r installation
5-12 M0303A2 4.5.01 September 2020
D
R
A
F
T

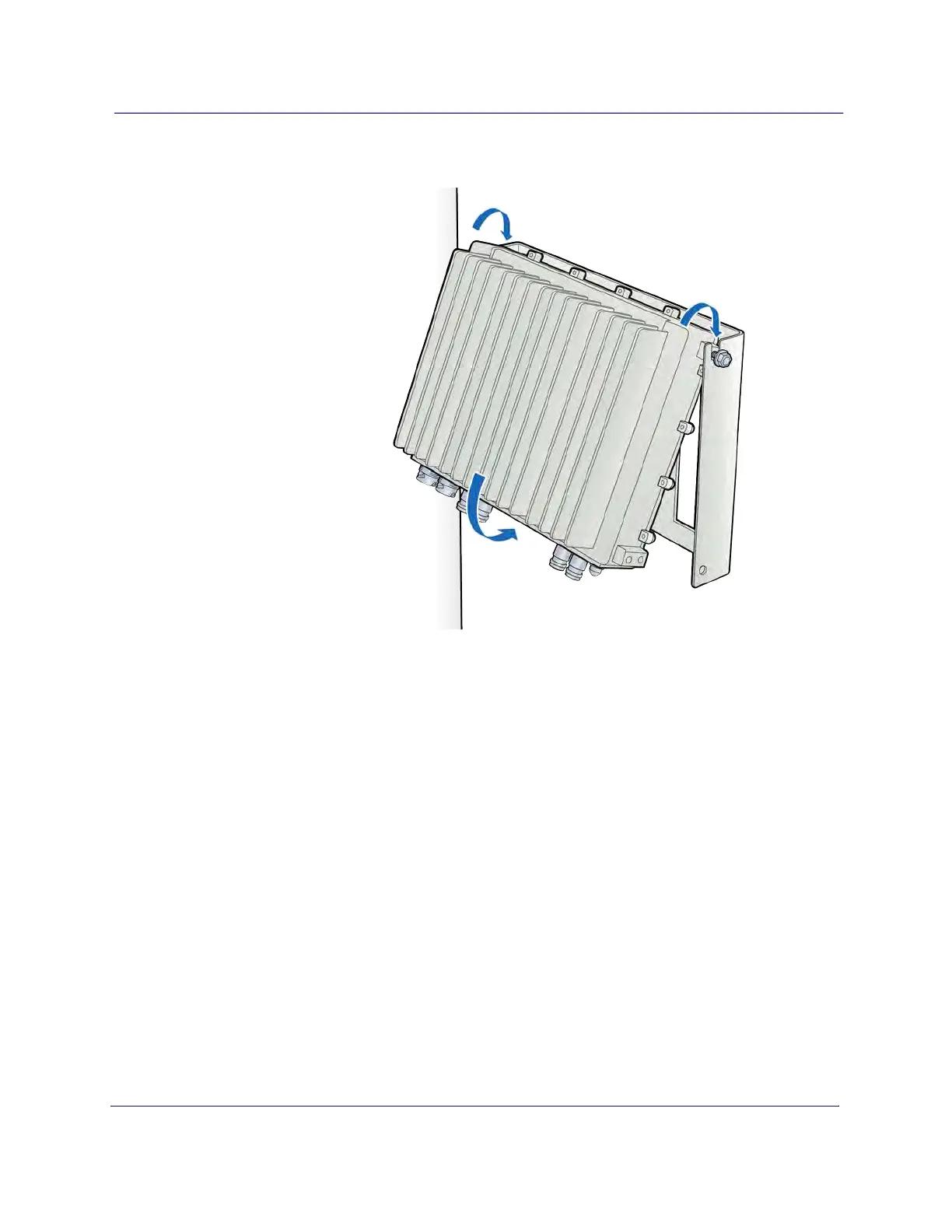

3 Attach the RP to the mounting plate.
4 Tighten the top screws on the RP and insert and tighten the bottom screws on the
RP.
NOTE: The torque requirement for the mounting screws is 20-21 in-lbs.
Required orientation is
with connectors at the
bottom of the RP
