Section 9: Balancing Rotors
132
2. Trial Readings (Single/Dual Plane)
The Trial Readings Menu allows for the initial measurements to be
performed before beginning the balancing of the machine.
• The Trial Readings Menu is accessed by pressing
from
the Balancing Menu.

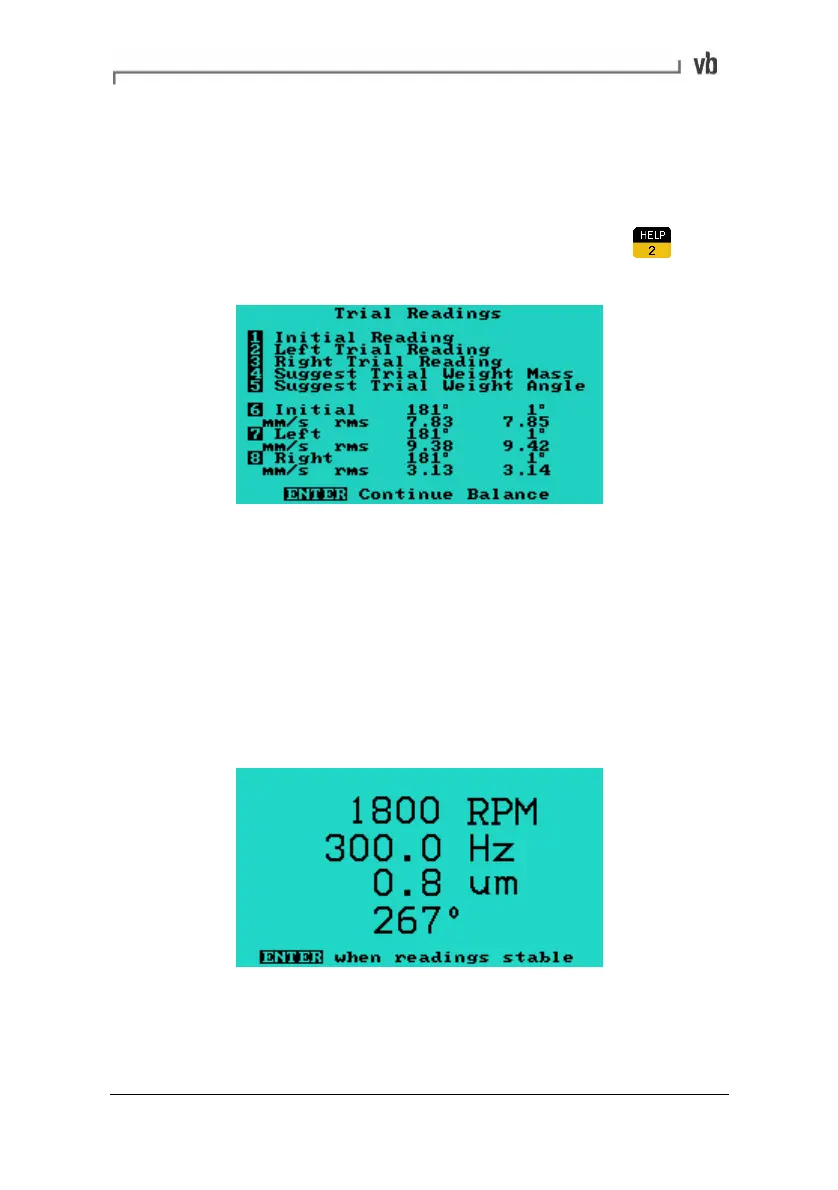

The diagram shows a dual plane balance job after initial and trial
readings have been taken.
Initial Reading
Used to take an initial reading to determine the 'out of balance' level
before performing any balancing procedures. When measuring has
started, the instrument will display the initial measurement in Hz,
RPM, your chosen display units and degrees (the phase angle of the
imbalance).
