4. Design and functioning
19
4.1.2 Design of the unit - AirStation L07FS-L11FS (RS)

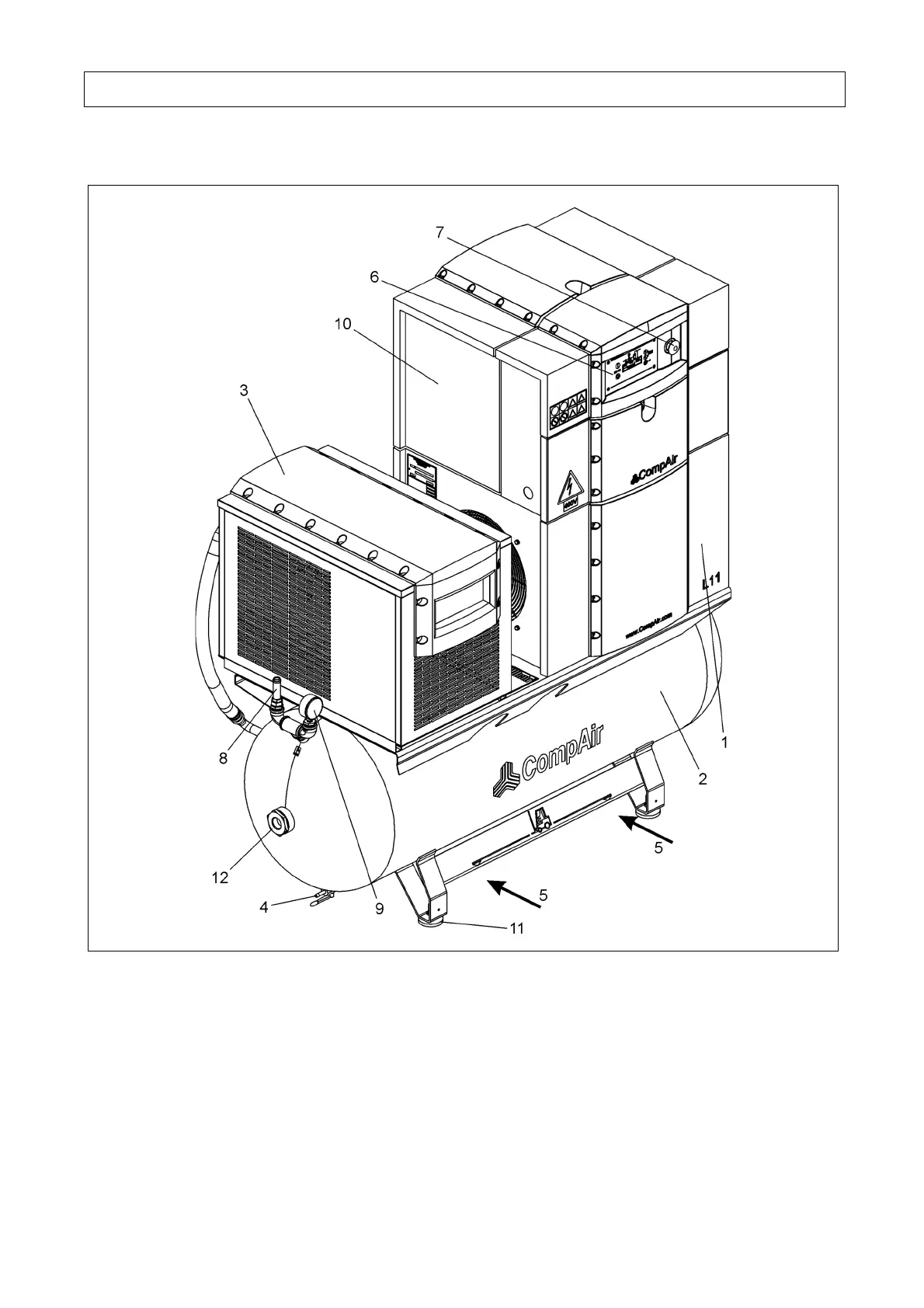

Fig. 2 b AirStation L07FS-L11FS
1
Compressor L07-L11
2
Pressure vessel 270 L
3
Dryer
4
Condensate drain
5
Opening for fork lift
6
Operating panel controller
7
EMERGENCY-Stop button
8
Safety valve
9
Manometer
10
Compressor hood
11
Stands
12
Compressed air connection
