11. Annex
60

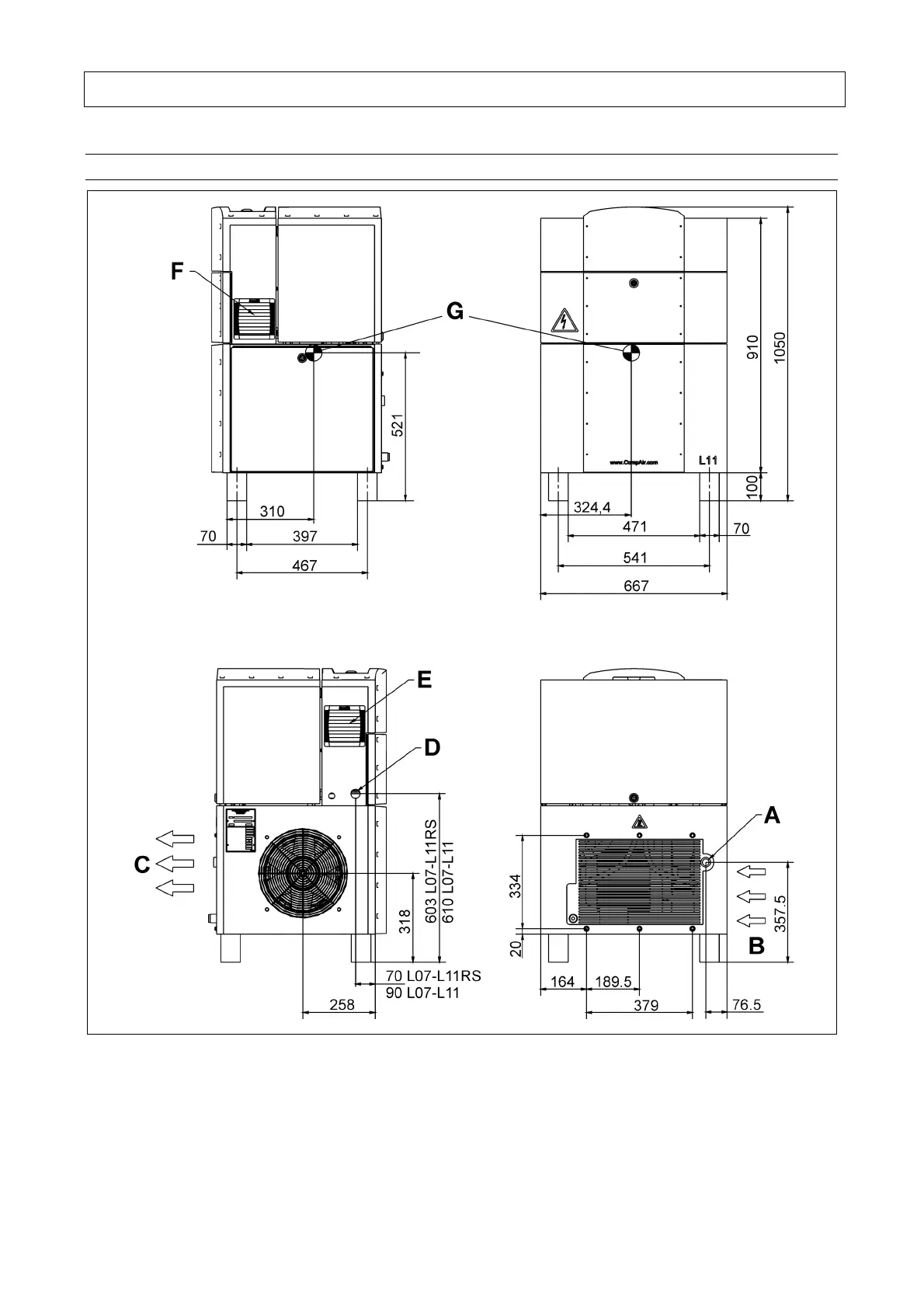

11.8 Layout plan L07-L11 and L07RS-L11RS
Fig. 24 (all dimensions in mm)
A = Compressed air connection G 3/4“
B = Cooling air inlet
C = Cooling-air outlet
D = Cable entry
E = Cooling-air outlet of control cabinet (L07RS-L11RS only)
F = Cooling-air inlet of control cabinet (L07RS-L11RS only)
G = Center of gravity
