Appendix E Matrox Millennium II Graphics Card
Compaq Personal Computers
Original - September 1997
E-6
E.5
MONITOR POWER MANAGEMENT CONTROL
This controller provides monitor power control for monitors that conform to the VESA display
power management signaling (DPMS) protocol. This protocol defines different power
consumption conditions and uses the HSYNC and VSYNC signals to select a monitor’s power
condition. Table E-4 lists the monitor power conditions.
Table E–4.
Monitor Power Management Conditions
Table E-4.
Monitor Power Management Conditions
HSYNC VSYNC Power Mode Description
Active Active On Monitor is completely powered up. If activated, the inactivity
counter counts down during system inactivity and if allowed to
tiemout, generates an SMI to initiate the Suspend mode.
Active Inactive Suspend Monitor’s high voltage section is turned off and CRT heater
(filament) voltage is reduced from 6.6 to 4.4 VDC. The Off mode
inactivity timer counts down from the preset value and if allowed to
timeout, another SMI is generated and serviced, resulting in the
monitor being placed into the Off mode. Wake up from Suspend
mode is typically a few seconds.
Inactive Inactive Off Monitor’s high voltage section and heater circuitry is turned off.
Wake up from Off mode is a little longer than from Suspend.
E.6 CONNECTORS
There are two connector types associated with the graphics subsystem; the display monitor
connector and the graphics memory expansion connectors.

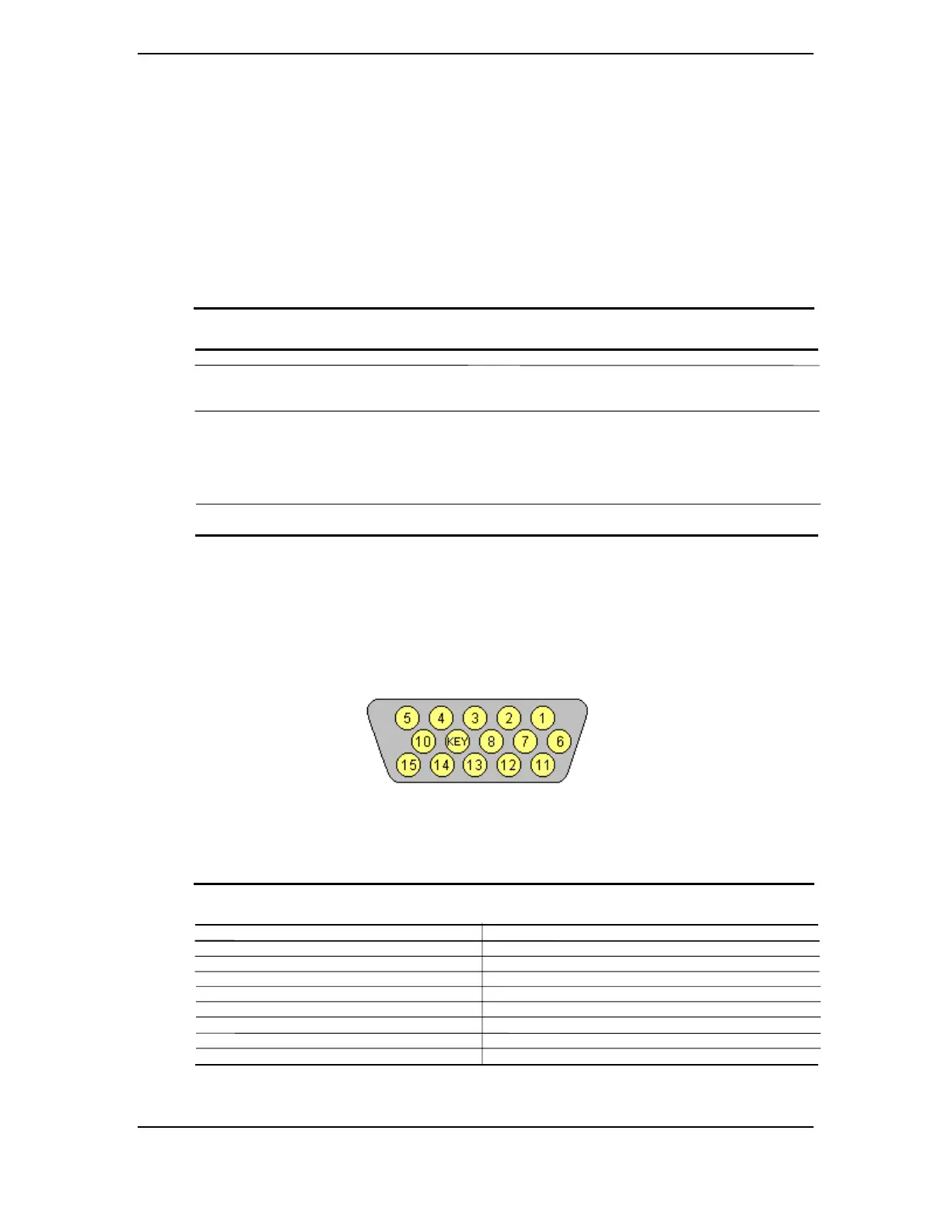

Figure E–3. VGA Monitor Connector, (Female DB-15, as viewed from rear).
Table E–5. DB-15 Monitor Connector Pinout
Table E-5.
DB-15 Monitor Connector Pinout
Pin Signal Description Pin Signal Description
1 R Red Analog 9 NC Not Connected
2 G Blue Analog 10 GND Ground
3 B Green Analog 11 Mon. ID Monitor Identification
4 Mon ID Monitor Identification 12 SDA DDC2-B Data
5 GND Ground 13 HSync Horizontal Sync
6 R GND Red Analog Ground 14 VSync Vertical Sync
7 G GND Blue Analog Ground 15 SCL DDC2-B Clock
8 B GND Green Analog Ground -- -- --
