Hardware Upgrades
Hardware Guide 8–9
To insert a memory expansion board:
a. Align the keyed (notched) edge of the board with the
keyed area in an expansion slot
1
. (If no other memory
expansion board is in the memory expansion
compartment, insert the board into the lower slot.)
b. Press the board into the slot from a 45-degree angle until
it is seated, then push the board downward
2
until the
retention clips snap into place
3
.

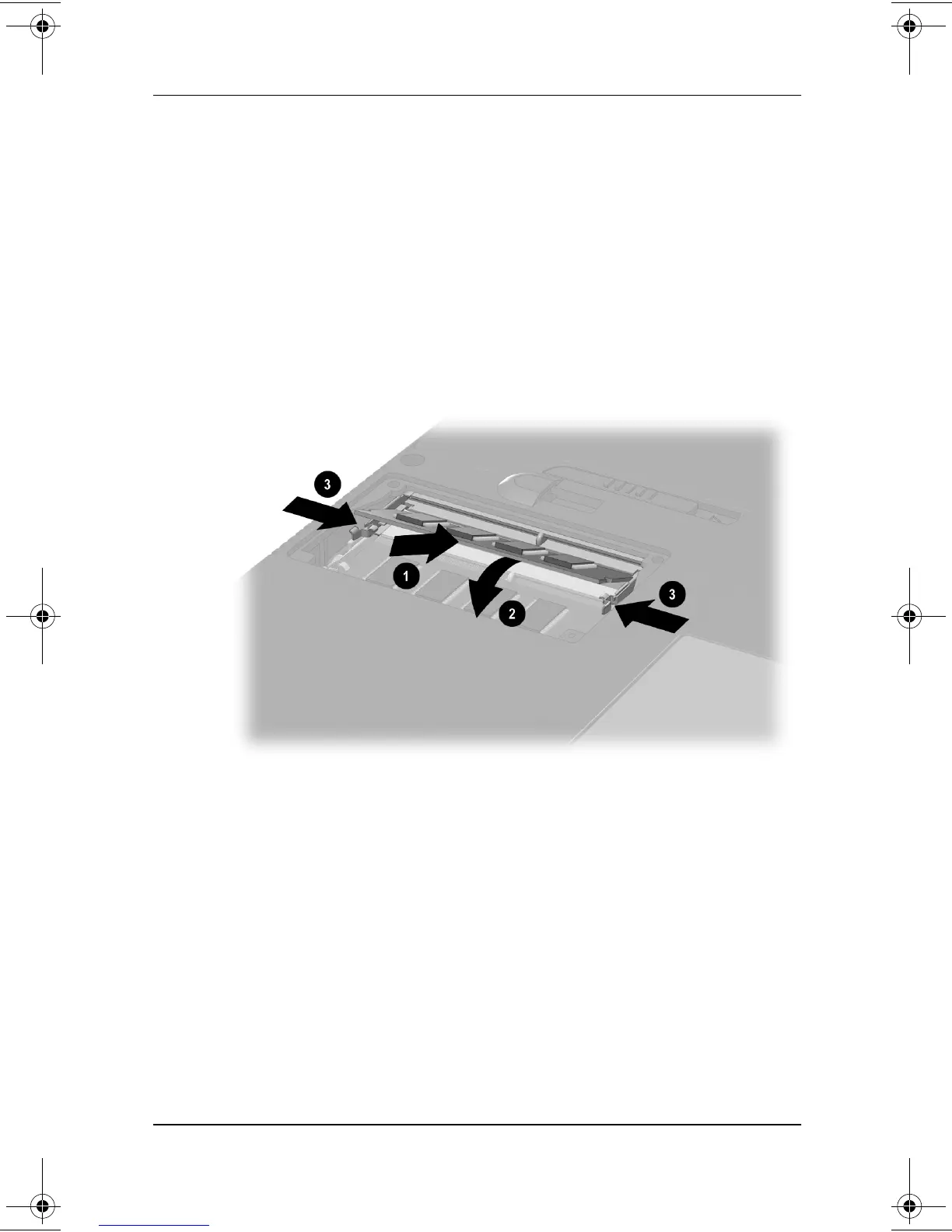

Inserting a memory expansion board
