Compaq Prolinea Family

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
When returning the drive cage to its resting position, ensure that none of
the cables are pinched between the drive cage and the base pan.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
6. Lower the drive cage down into its normal operating position, taking
care not to damage the drive cage lock and retainer.

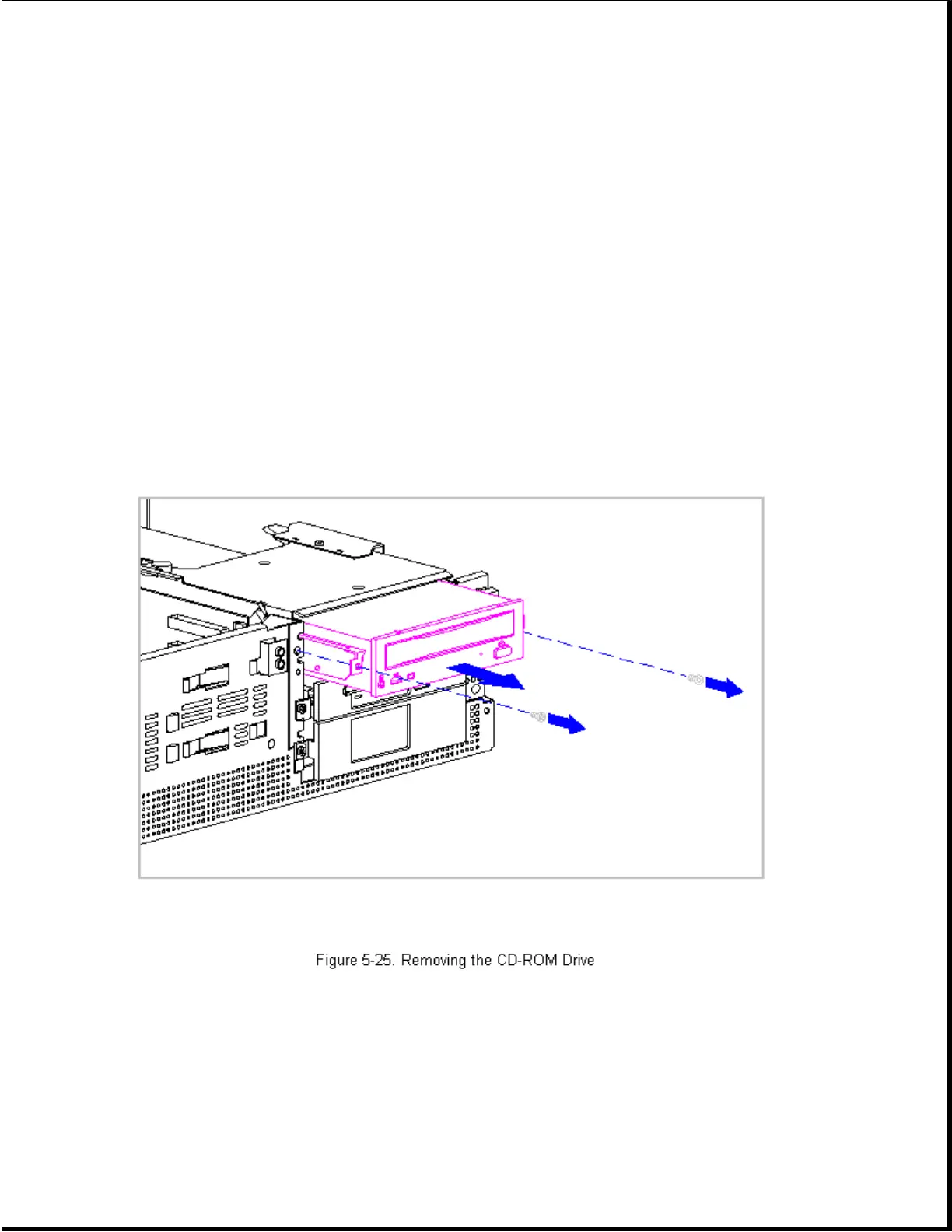

7. The CD-ROM drive is secured in place with two screws on the front of
the computer. Remove the two screws and slide the CD-ROM drive out the
front of the drive cage (Figure 5-25).
8. Remove and retain the mounting brackets from the CD-ROM drive (Figure
5-26).
