Chapter 3. Illustrated Parts Catalog
Chapter 3.0 Introduction
This chapter provides an illustrated parts breakdown and a reference for
spare parts for the DT3 and DT4 models of the Compaq ProLinea Family of
Personal Computers. Spare part numbers and warranty tier are included.

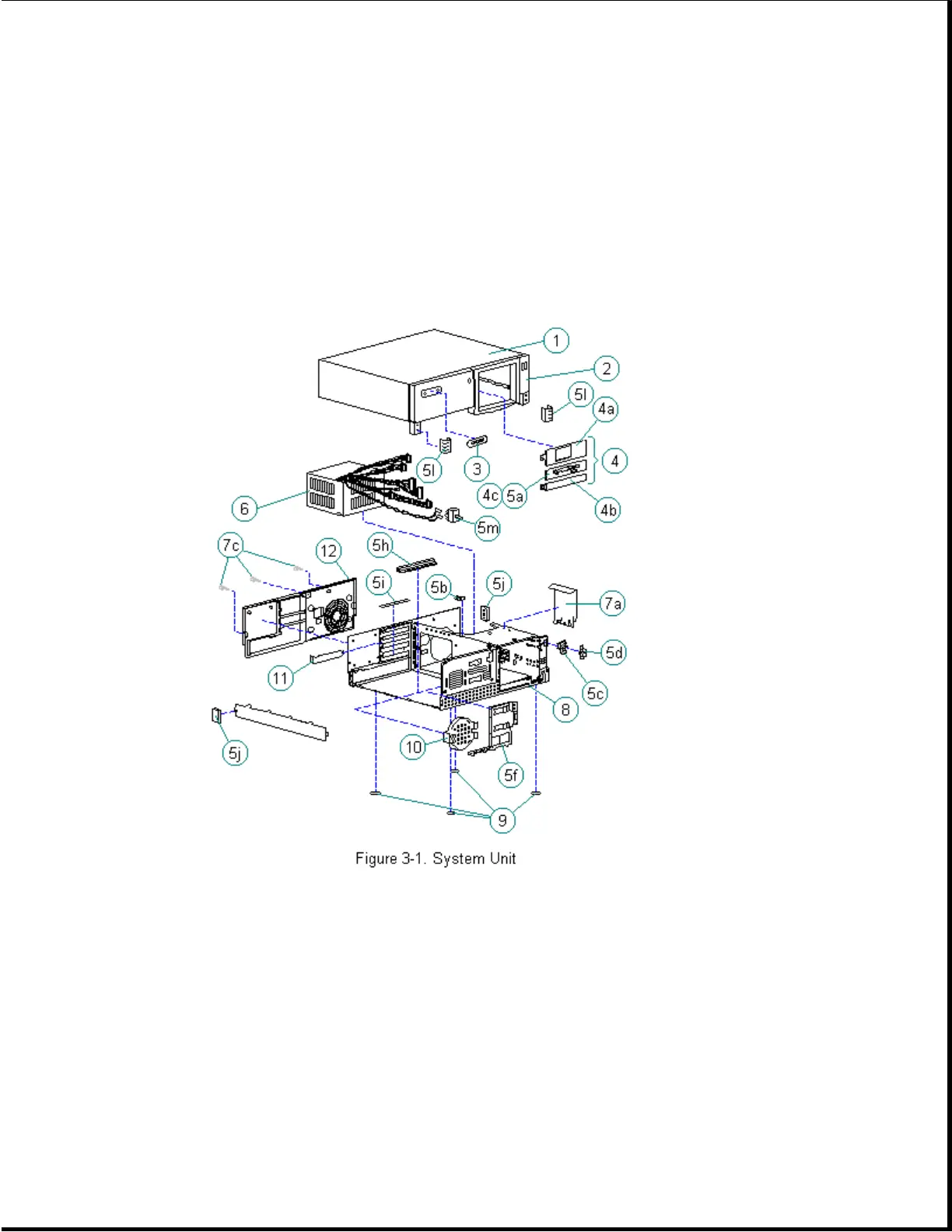

Chapter 3.1 System Unit
Table 3-1. System Unit Spare Parts
===========================================================================
Spare Part Warranty
Description Number Tier
===========================================================================
1. Hood Assembly w/Front Bezel (DT3) **
(Order logo separately) 172634-002 A
---------------------------------------------------------------------------
1. Hood Assembly w/Front Bezel (DT4)
(Order logo separately) 172634-004 A
---------------------------------------------------------------------------
2. Front Bezel (DT3) ** (Order logo separately) 172632-002 A
---------------------------------------------------------------------------
