COMPRO IP55 - Camera Layout

2-5
Chapter 2: Product Overview
Camera Layout
For the IP55 and IP60 camera.

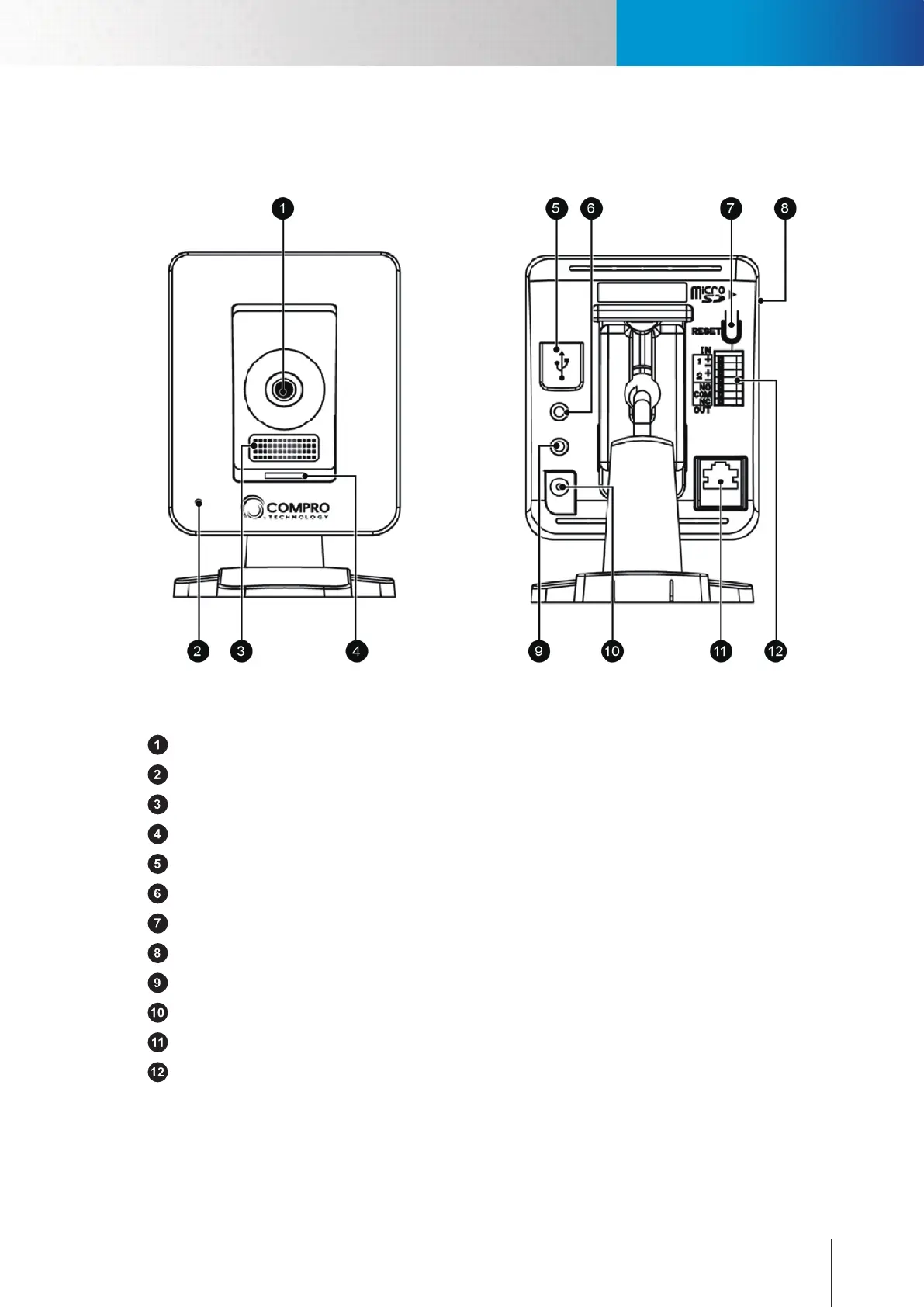

Figure 2-3. Front and rear view of IP55/IP60
Lens.
Microphone
Speaker
LED status indicator
Wireless adaptor connector (USB type)
Audio Output
Reset Button
microSD card slot (on the side)
Microphone Input
Power connector
Ethernet Port
I/O port (2 in / 1 out)
Camera Layout
