Connecting the internal relays
Statox 503 has three relays, each equipped with one make and one break contact. Two relays monitor
alarm threshold exceeding, one system failure.
System failure relay: The SF-relay coil is always active and drops out in case of a system
failure or voltage drop.
The alarm relay parameters can be set in the main menu. The SF-relay settings cannot be changed.

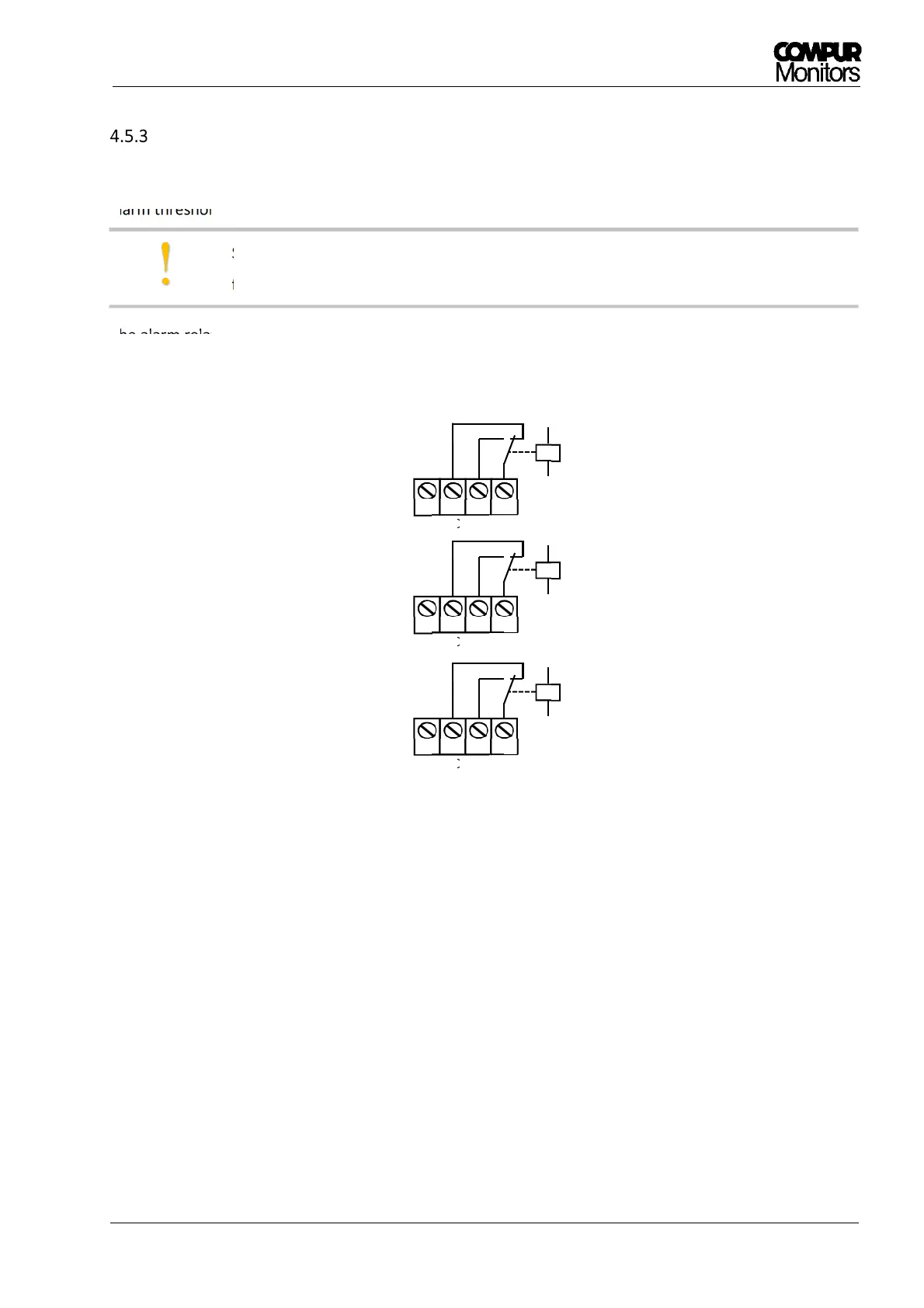

Figure 10 shows the contacts:
13
14
1
5
16
NC NO
C
SF
17
18
1
9
20
NC NO
C
A2
21
22
23
24
NC NO
C
A1
!
Figure
10
: Relay contacts (
coil
de
-
energized)
