Compur Monitors Statox 503 - Reading the Bridge Voltage

Statox 503 Control Module
Page 22 of 46 Issue 10 / 2018
c) Display „DONE“:
The calibration was successful. After 2 s the display changes.
12. The display will now show the actual measured value with unit.
In order to avoid unrequested alarms make sure the signal created by the test gas has
dropped below the alarm threshold prior to returning into the measuring mode.
13. Confirm with to return to the main menu.
14. Return into the measuring mode by pushing Reset.
If the calibration has not been completed successfully (ERROR 8, CALIBR. FAILED or GAS
CONC ERROR), the module will continue with the most recent valid data. The display shows
alternating „CALIB. FAILED“ and the measured value. A new calibration should be done as
soon as possible.
Reading the bridge voltage
Active in the programs for Statox 501 HRC, ARE, LCIR, MCIR, CO
2
and PID sensor heads.
The current bridge voltage of the sensor can be displayed.
SENSOR
TEST
Expl. Gas
xxx mV
R
R

MESSBETRIEB
XXX %LEL
R

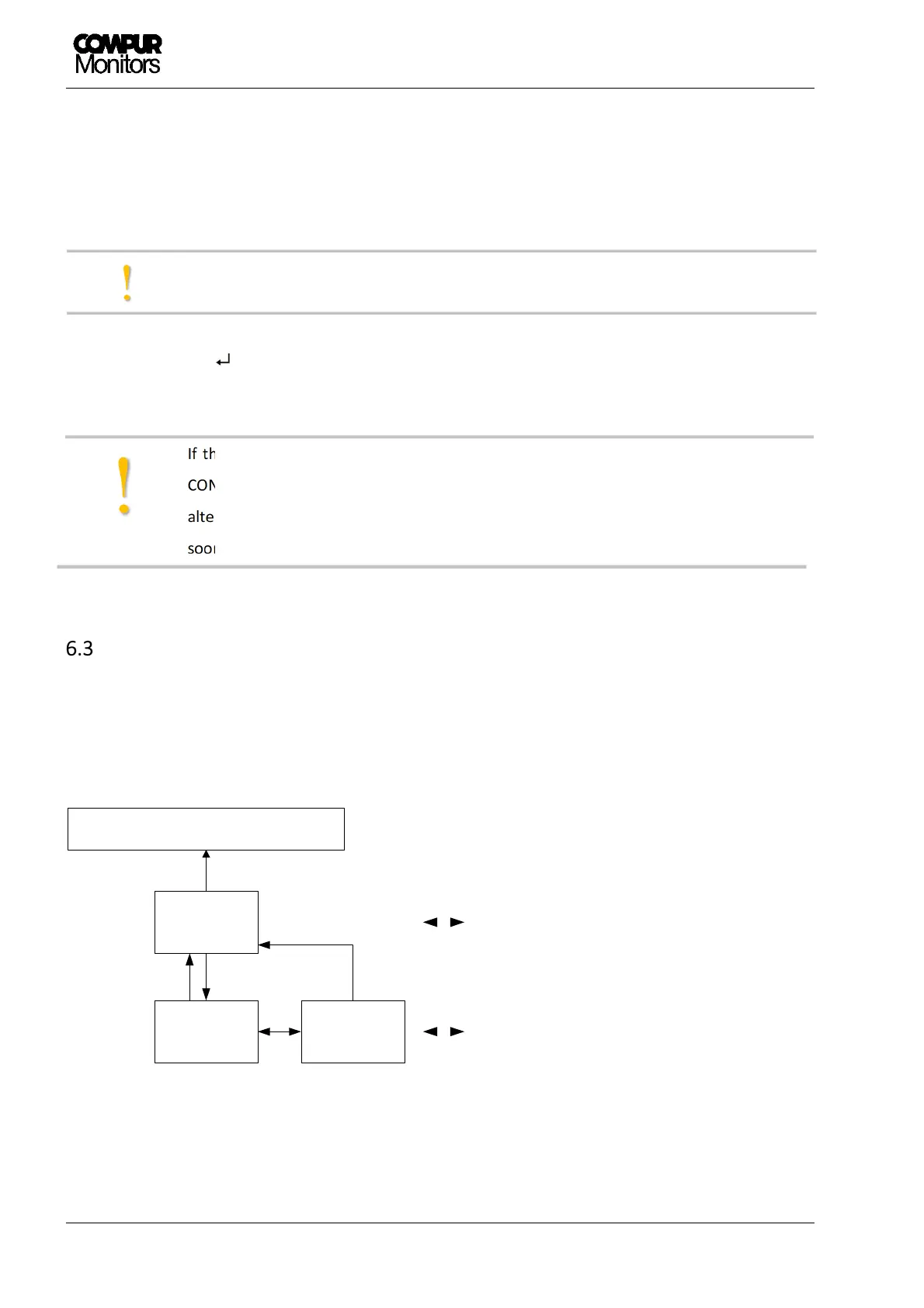

Figure 15: Bridge voltage menu diagram
!
!
Change Menu item
Display of actual bridge voltage or actual
concentration (flashing).
60 min time-out.
MEASURING MODE
