CompuSTAR DroneMobile DR-2000 - Type 2 - Data

TM

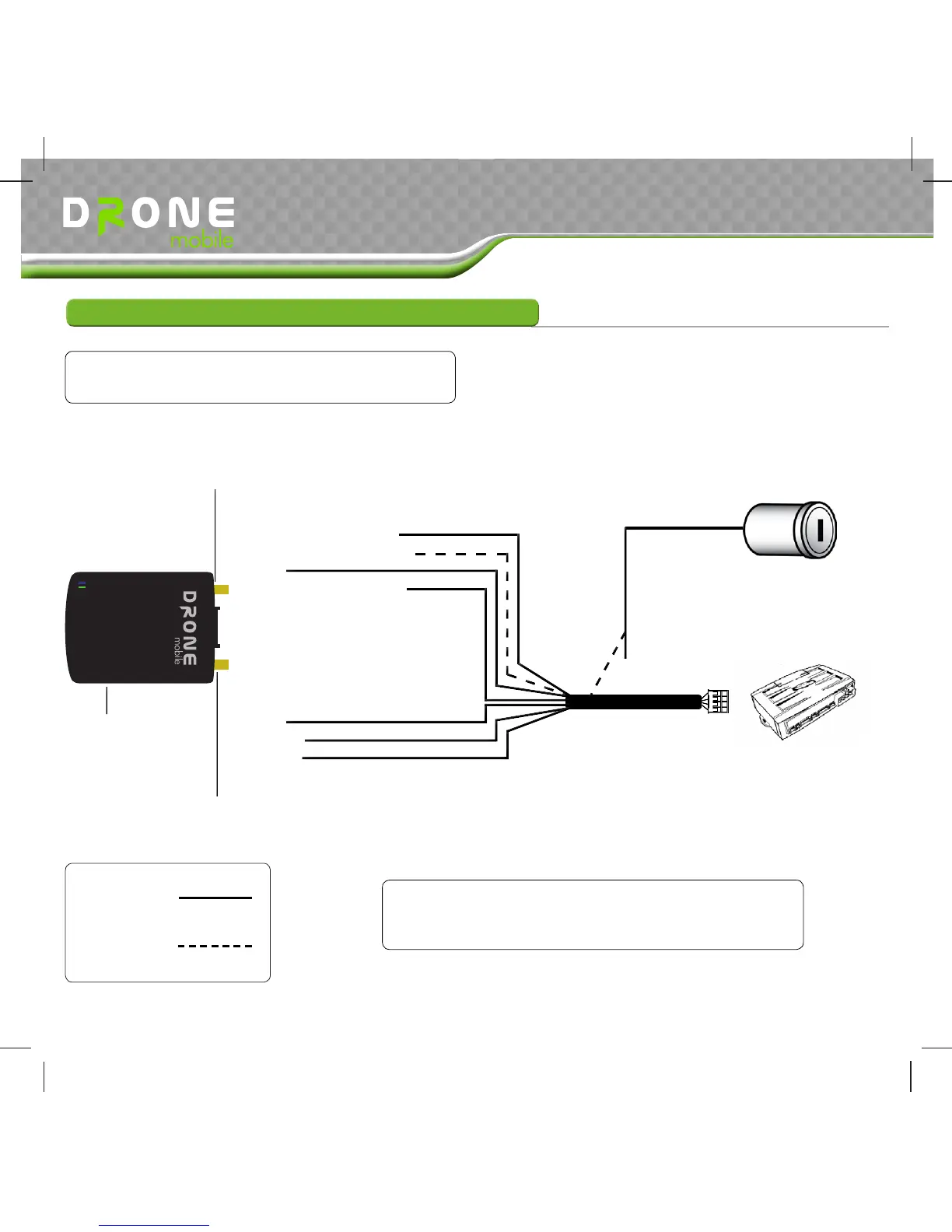

Wiring Diagrams
Required
Optional
DR-2000 Compatible
Firstech Control Module
Follow Type 2 when using DroneMobile with a
compatible Firstech Control Module
5 | Copyright 2011 Firstech, LLC.
The Green Ignition Wire is only used if the
contol module does not support 2 Way Data or
Ignition signal through data.
Type 2 - Data
Red: (+) 12 Volt Constant
Black:
N/A
N/A
N/A
Green: (+) Ignition Input
Black: (-) Ground Input
N/A
N/A
N/A
12V+ Ignition
Yellow:
White:
Black:
To RS232 Data Port On
Control Module
Optional External Cellular Antenna Port
Optional External GPS Antenna Port
GPS
GSM
TM
Reset Button
DR-2000 Install Guide
