CompuSTAR DroneMobile DR-2000 - Type 3 - Hardwire

TM
Wiring Diagrams
Required
Optional
Compustar or
Aftermarket
Remote Start
*
Follow Type 3 when connecting DroneMobile to a non-data
Firstech control module or aftermarket alarm and remote start
Copyright 2011 Firstech, LLC. | 6

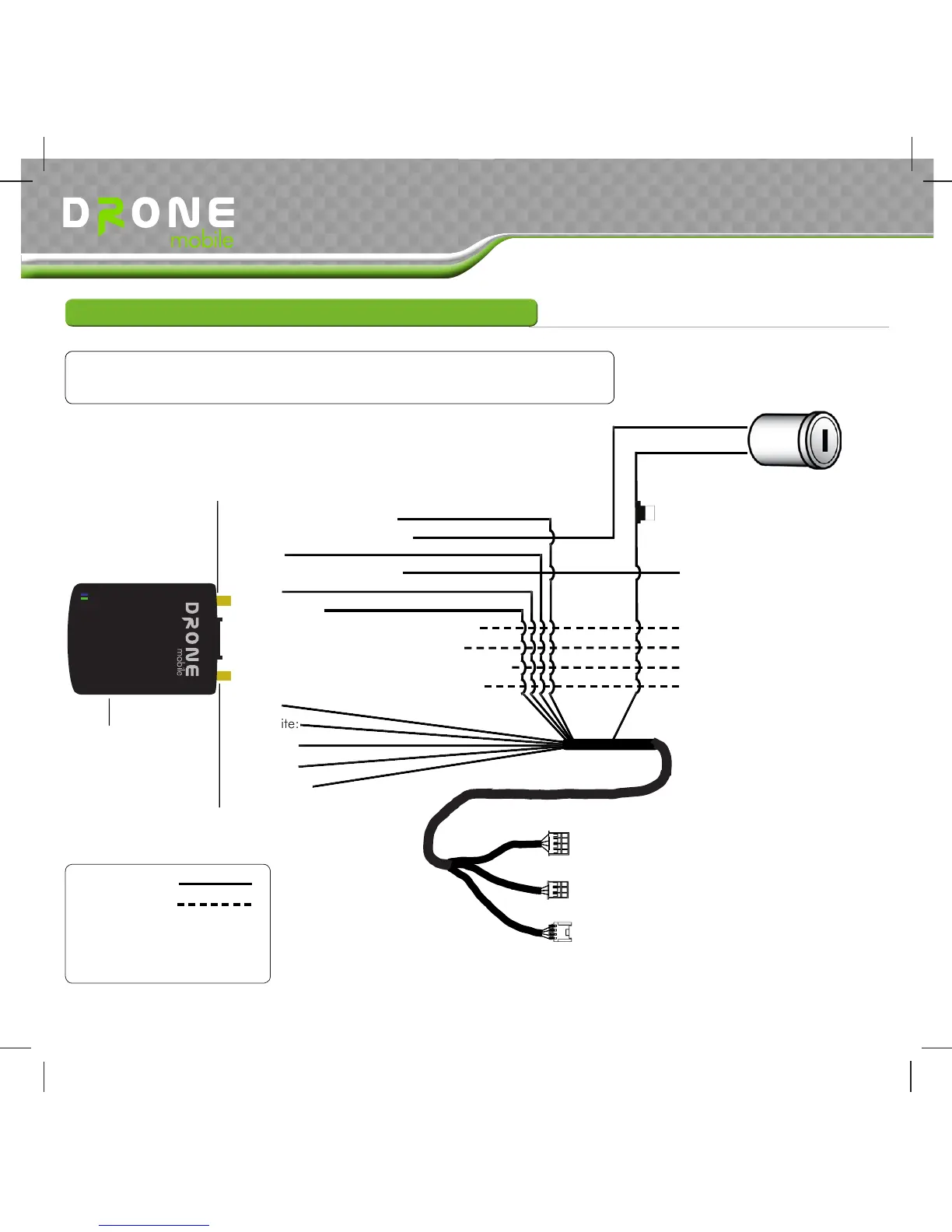

Type 3 - Hardwire
6 Pin Antenna Port (Not Used)
RS232 Data Port (Not Used)
4 Pin Antenna Port (Not Used)
Red: (+) 12 Volt Constant
Yellow:
White:
Blue/Black: (-) Programmable Output 1
Brown: (-) Programmable Alarm Trigger Input
Green: (+) Ignition Input
Black: (-) Ground Input
Blue(Thin)
Blue: (-) Programmable Output 2
Orange: (-) Programmable Output 3
Optional External Cellular Antenna Port
Optional External GPS Antenna Port
Yellow:
White:
Black:
Black:
Orange:
GPS
GSM
TM
Reset Button
12V+ Constant
12V+ Ignition
Chassis Ground
*See Option 2-05
*See Special Option Group 2
*See Special Option Group 2
*See Special Option Group 2
DR-2000 Install Guide
