(release both levers) and carry out the procedures on page 9 (If The Dies Do Not
Close Fully).
If the dies DO close fully, the installation procedure is done.
Non-round and Multi-Pressing Die Installation
he following procedures can be used to install all sizes and types of non-
round and multi-pressing dies, and tooling, supplied by COMTEC for your
Press. We will assume the Press does not have a set of dies installed at this
time.
1. Switch Power Off. Use the power switch at the control panel on top of the
Press.
CAUTION: MAKE SURE THAT THE POWER TO THE PRESS IS OFF BEFORE
ATTEMPTING TO INSTALL A DIE.
2. Examine your dies. Make sure that both hubs are clean. While both hubs should
be clean, be especially certain that the upper die is clean. If the hub of the upper die
is coated with dough or other foreign material, the die may not heat properly (See
Figure 13).
3. Make sure that the circular hub on the heater assembly and all locating holes on
the rectangular travel plate are clean.
4. Feed die alignment bolt through the hole in the bottom of the lower die half.
5. Fit tail of lower die half into travel plate. (See Figure 5)

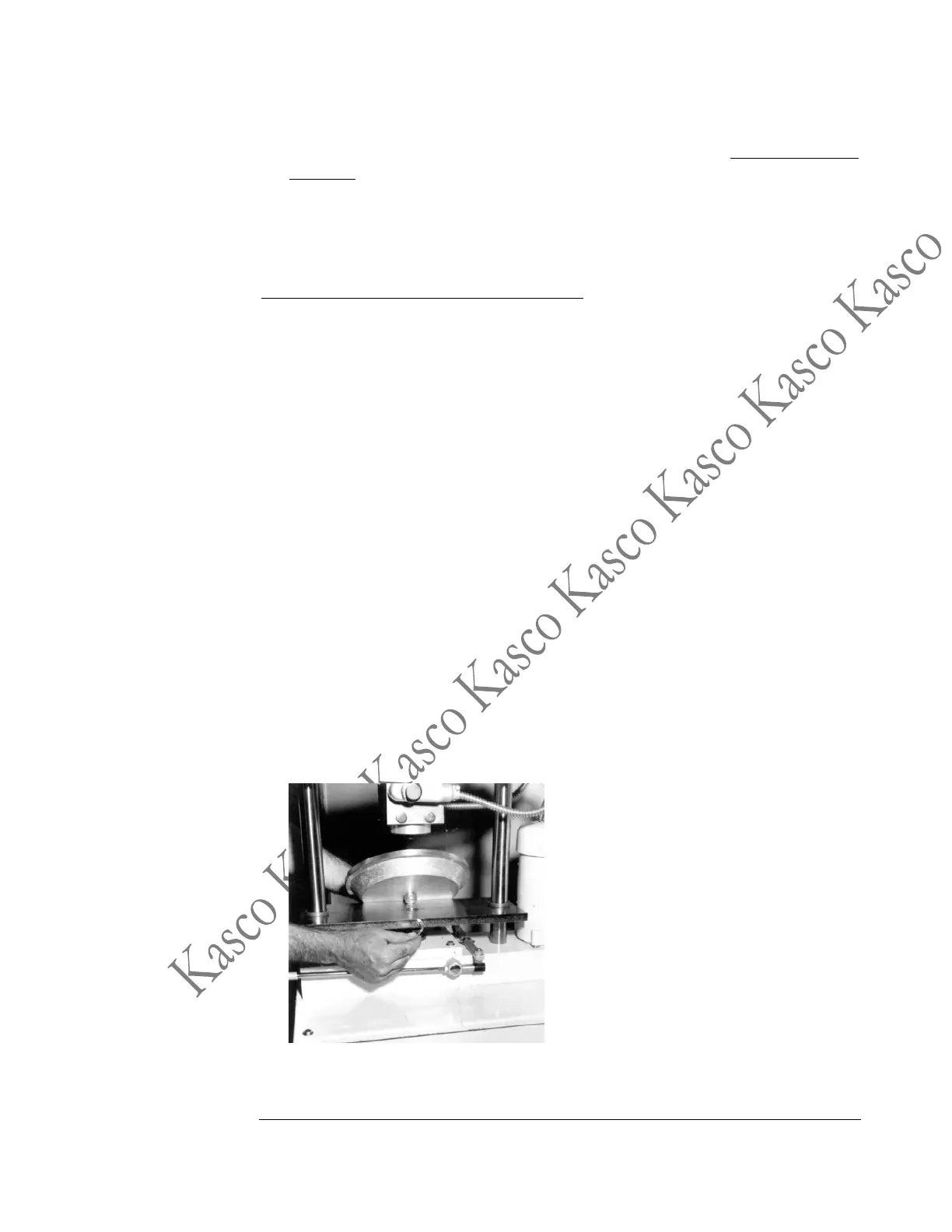

Figure 5 Installing Lower Die Half
