Conair Basic 32 Loader Control B32 User Manual

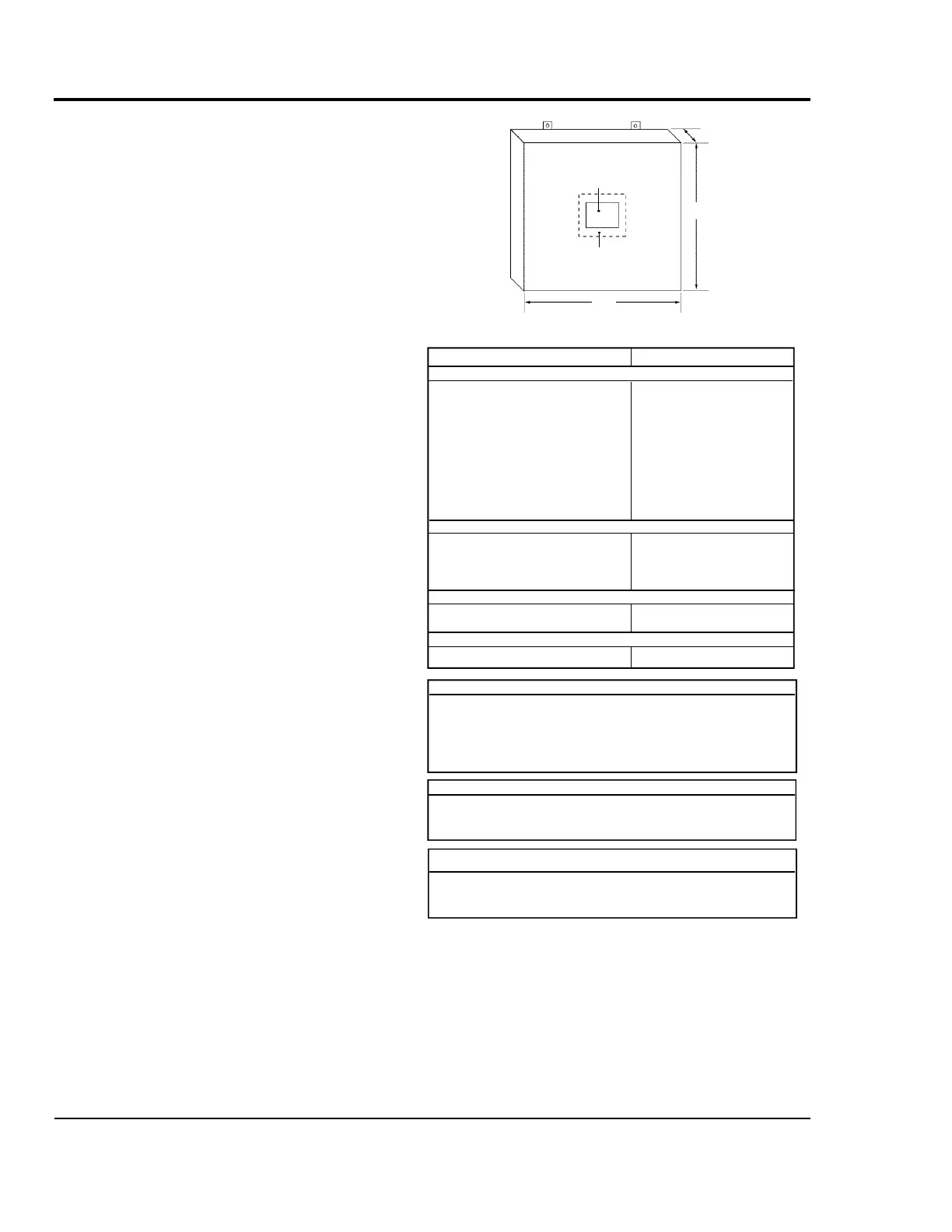

SPECIFICATIONS
Basic 32 Loader Control UGC007/0702
2-4 DESCRIPTION
MODEL B32
Performance characteristics
Maximum number of vacuum receivers 32
Maximum number of vacuum pumps 8 (plus back-up)
Programmable logic controller Allen Bradley Micrologix 1500
Touchscreen operator interface Allen Bradley PV300 Micro
Communications with master control DH485
Screen size, inches {mm} 2.87 X 1.67 {73 X 42}
User interface method Keypad
Output voltage to receivers/valves 24 VDC
Sensor voltage to receivers 24 VDC
Output voltage to pumps 24 VDC
Dimensions inches {mm}
Master control cabinet
A - Height 31.4 {998}
B - Width 23.8 {606}
C - Depth 12.5 {318}
Weight lb {kg}
Installed 70 {32}
Shipping 85 {39}
Voltages Total amps
115V/1 phase/60Hz (master control) 10
CALCULATING CABLE LENGTH:
Total the distances from the Input/output Station(s) location to each vacu-
um receiver on the system. Be sure to account for reasonable slack at
each loading station for connections, cable routing, etc.
APPLICATION NOTES:
Conair vacuum receivers come equipped with a quick-disconnect connec-
tor set that includes 10 feet of cable. Junction boxes must be provided to
connect the system cable and each vacuum receiver’s connector set.
SPECIFICATION NOTES:
B32 loader control cable: 18 gauge shielded, 8-conductor may be used
for standard vacuum receivers with up to one optional output and input,
otherwise 10-conductor cable is required.
Specifications can change without notice. Check with your Conair
representative for the most current information.
A
B
C
5.5 inch screen
(optional)
3 inch screen
standard
