System Overview Screen

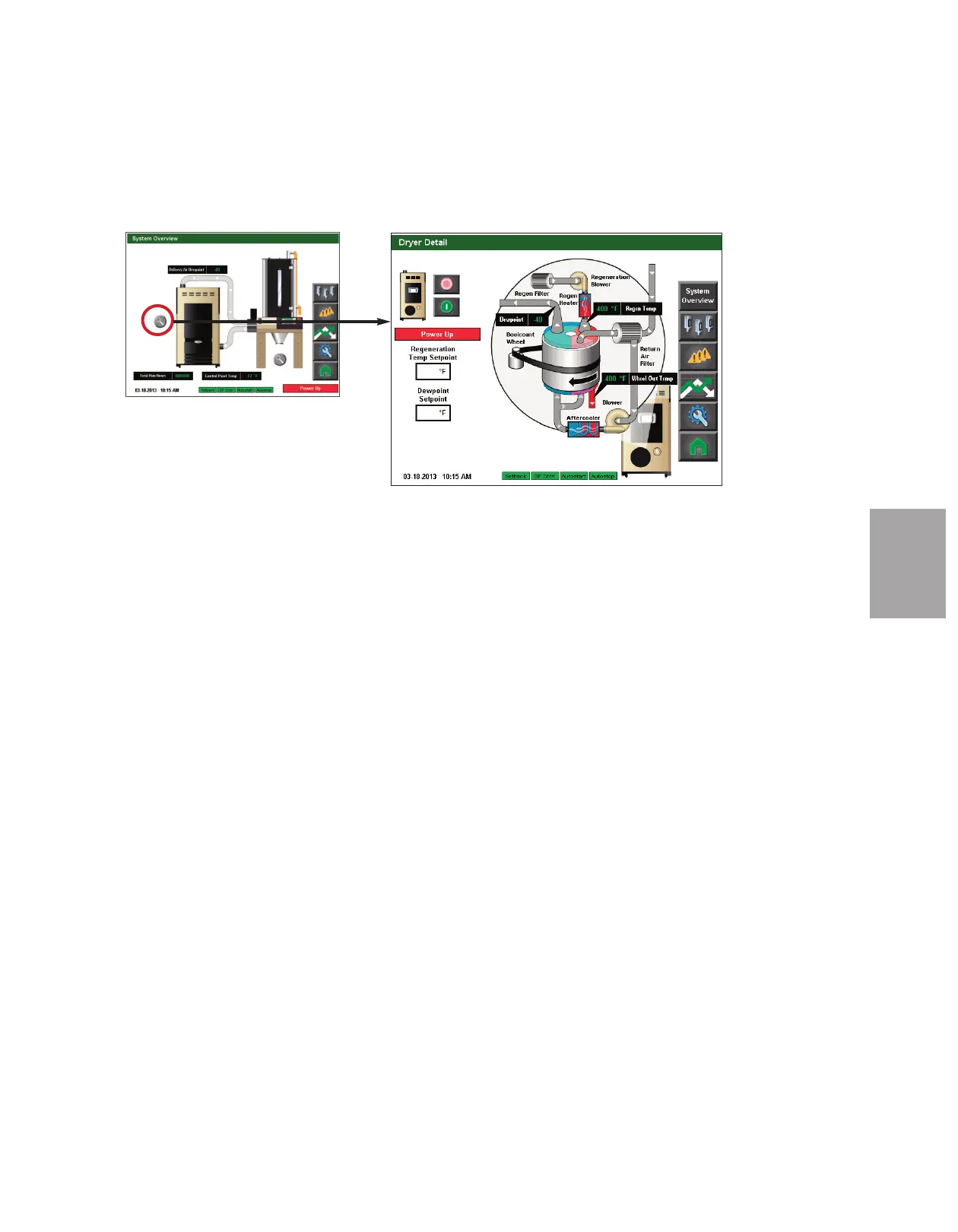

To access the System Overview screen:
1 Press the Magnifying Glass (zoom) button associated with the dryer on the System
Overview screen.
The System Overview screen provides the user with the current live information concerning
the processes within the dehumidifying dryer including:
• Regeneration Temperature (Regen. Temp)
• Return Air Temperature (Temp)
• Dewpoint
• Wheel Out Temperature (Temp)
It also tells the user the current status of the dryer blower (running or idle), as well as which
features (Autostart, Autostop, Setback, Dewpoint Control) are enabled.
If the user is logged-in at the proper security level, setpoint changes can be made to:
• Regeneration Temperature Setpoint - Conair recommends not changing this setting.
• Dewpoint Setpoint (optional)
This screen also allows the user to start or stop the dryer. The user can also view the other
system parameters, view alarms, view trending, view hopper settings, return to the System
Overview screen, or return to the Home screen by pressing the applicable buttons on the
right of the screen.
NOTE: Live data is displayed as
colored text inside a solid black
box. Set points boxes are white
with heavy black borders. Set
points can be changed, if the user
has logged in at the proper secu-
rity level, by pressing the set
point boxes. This will launch a
pop-up keypad window that can
be used to change the set point.
See Operation section entitled,
How to Navigate Control Screens.
After the new set point value has
been entered, press the "Enter"
key to lock in the new set point.
✐
(continued)
