22 Installation
9. Mounting the tub rubber sealing:
• Fix tub rubber sealing with the clips to the ceramic support proles as shown below (longer part
of the clip is on the side of the rubber sealing). Cut rubber sealing on both sides of the duct to
the appropriate length. Make sure rubber sealing is ush with the edge of the tub and the lateral
sealing plates on both duct sides.

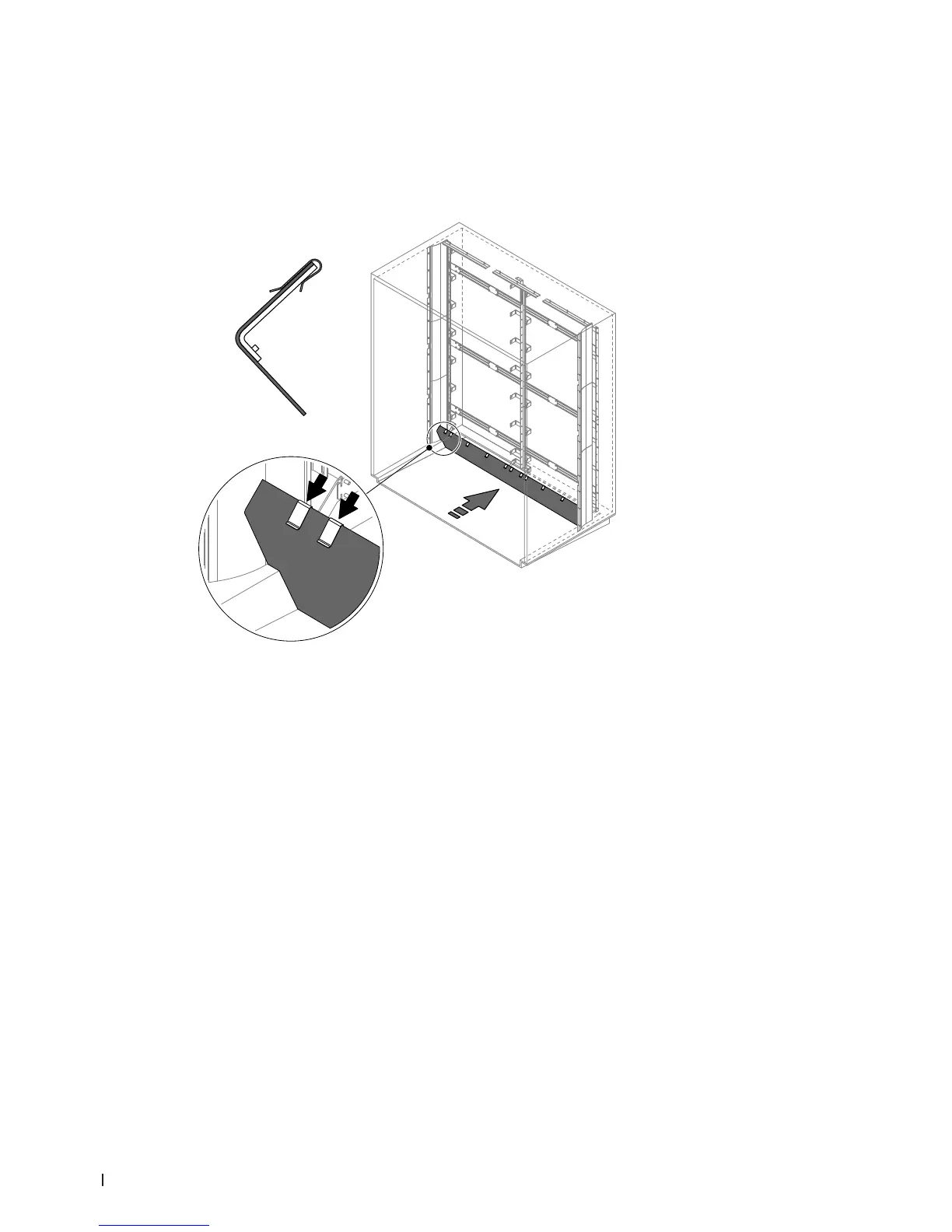

Abb. 11: Mounting the tub rubber sealing
