Condair DL - Mounting the Post-Evaporation Unit

13Installation
4.2.2 Mounting the post-evaporation unit
1. Marking the positions of the fastening elements inside the duct/AHU:
• Mark the position of the topmost fastening holes (or welding studs) for the fastening of the lateral
supports of the post-evaporation unit “A”, the nozzle system “C” and the fastening proles for
the lateral sealing plates “B” on both duct walls using the drilling template supplied.
• Mark the position of the outmost fastening holes (or welding studs) for the fastening of the left-
most and rightmost fastening proles for the upper sealing plates “D” on duct ceiling using the
drilling template supplied.
Note: For marking the fastening holes (or welding studs) “D” the drilling template must be bent
90° on the indicated position.

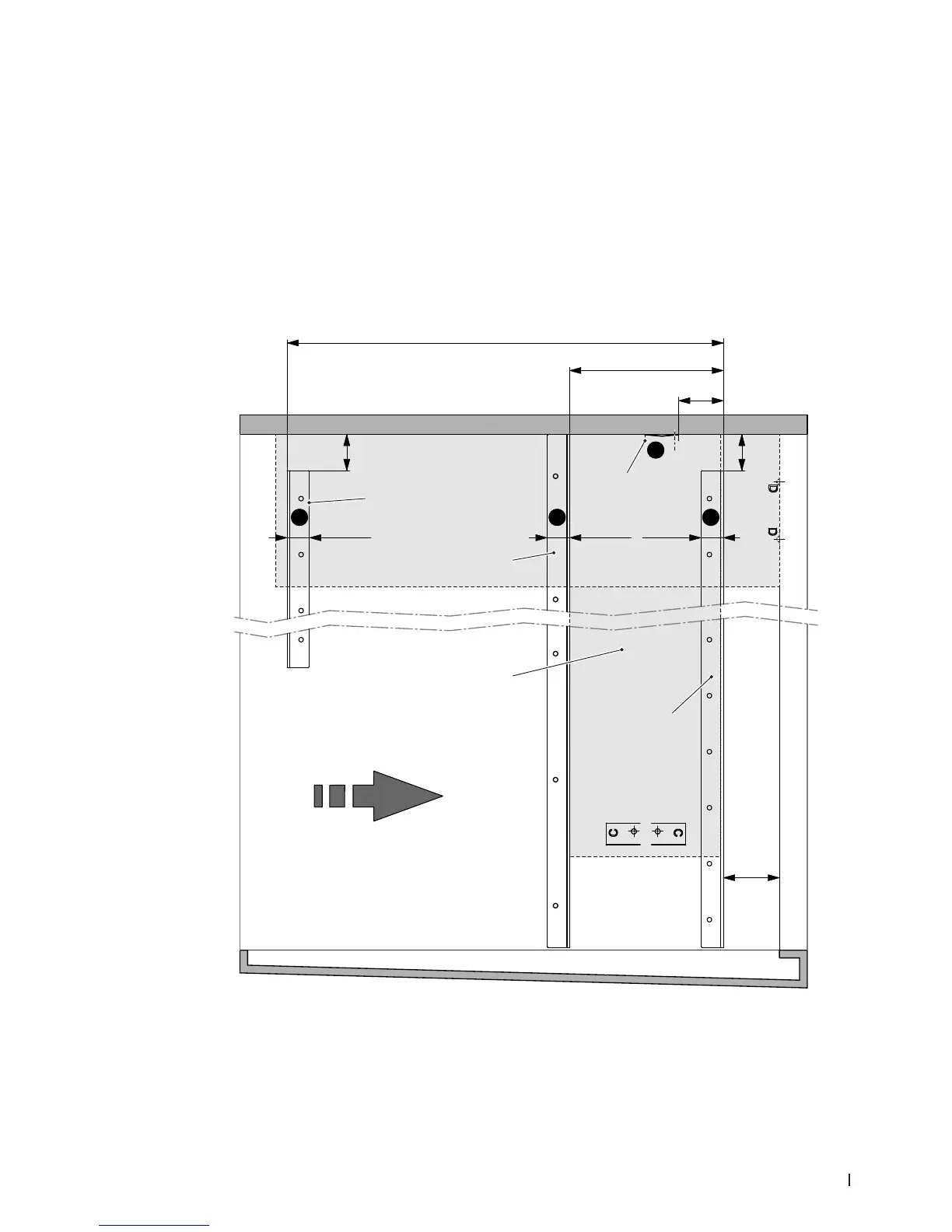

Abb. 3: Positioning of the fastening elements (side view)
b
a a
C
B
A
D
780 mm +120/-180 mm
275 mm
min.
100 mm
(75 mm)
40 mm 40 mm40 mm
65 mm 65 mm
Lateral support
nozzle system
Fastening prole
for lateral sealing plates
Fastening prole
for upper sealing
plates
Lateral support
post-evaporation unit
Air ow direction
Drilling template
