24 Installation
11. Mount the ceramic plates:
• Start from the bottom left (view in air ow direction) carefully hang the ceramic plates of the bot-
tom row onto the carrier proles, then align the row to the middle of the duct.
Important: Make sure, the very right and very left ceramic plates have the same distance to the
duct wall and that all plates properly rest against each other.
Important: On sites with ceramic plates with a height of 300 mm, make sure these plates are
mounted always in the bottom row.
• Start from the left (view in air ow direction) carefully hang the ceramic plates of the remaining
rows onto the carrier proles and carefully align them to the subjacent ceramic plates row.
Important: Make sure the ceramic plates rows are aligned exactly below each other and that all
plates properly rest against each other.

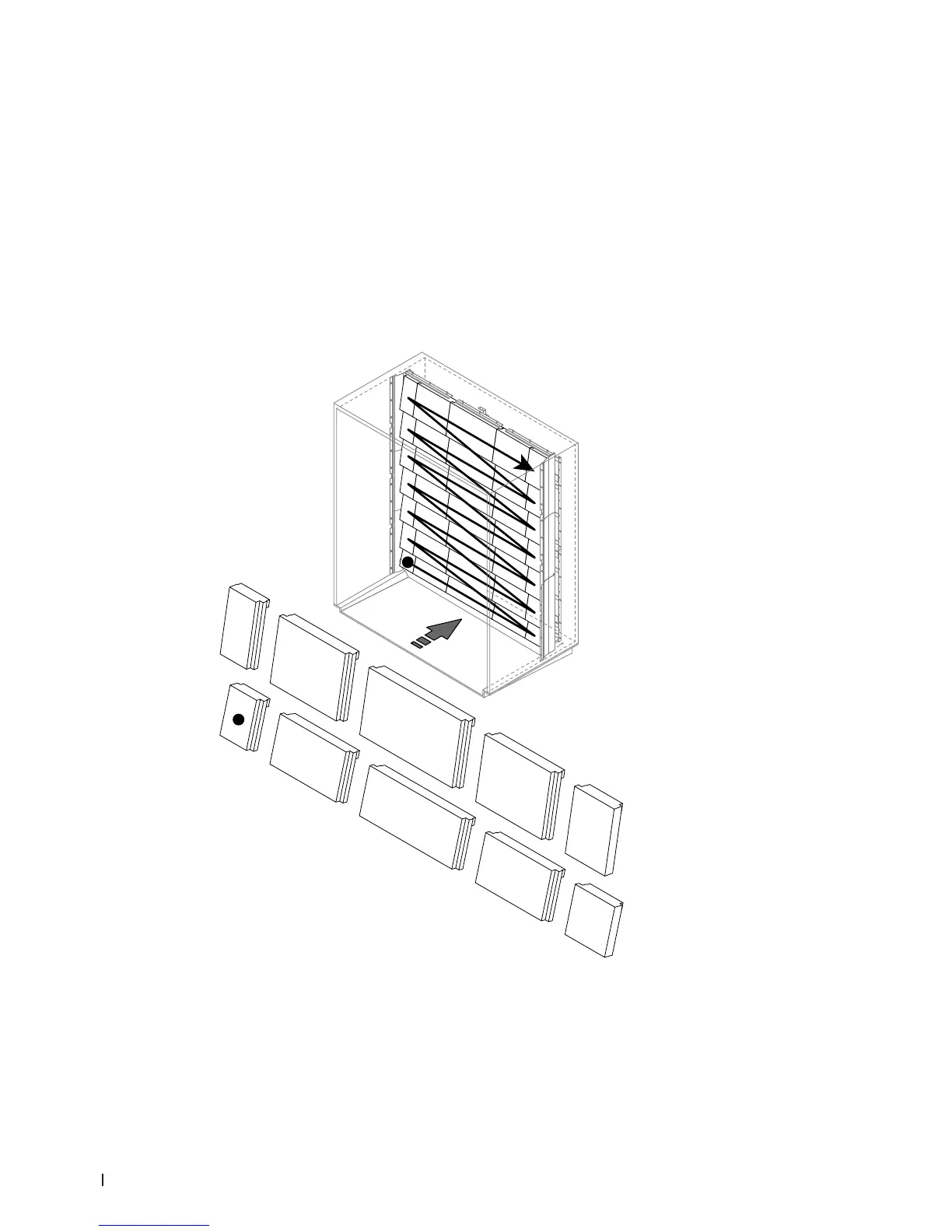

Abb. 13: Mount the ceramic plates
